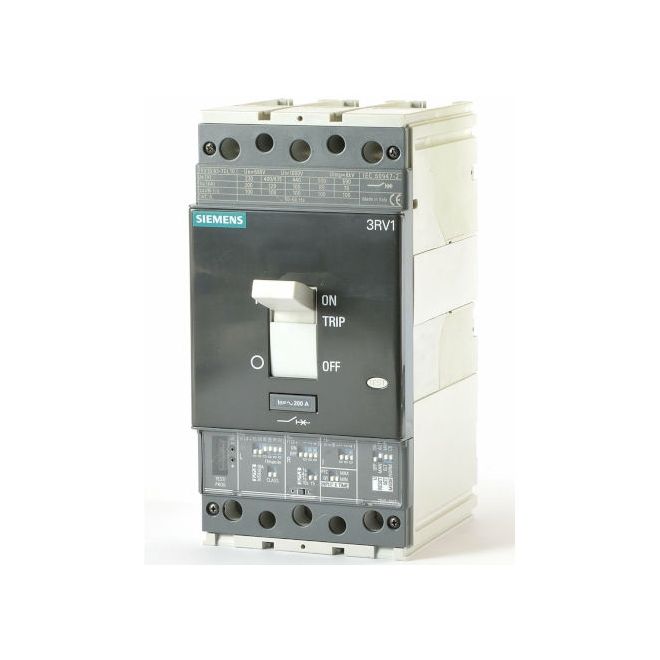

SIEMENS 3RV1063-7CL10 Molded Case Circuit Breakers
SKU#:
486113
3RV1 motor starter protectors/circuit breakers are compact, current limiting motor starter protectors/circuit breakers which are optimized for load feeders. The motor starter protectors/ circuit breakers are used according to IEC for switching and protecting three-phase motors of up to 45 kW at 400 V AC and for other loads with rated currents of up to 100 A. SIEMENS 3RV1063-7CL10 manual motor starter protectors/circuit breakers are generally approved according to IEC and UL/CSA. The 3RV1 motor starter protectors/circuit breakers have 3 main contact elements. In order to achieve maximum flexibility, auxiliary switches, signaling switches, auxiliary releases and isolator modules can be supplied separately.
| Brand | SIEMENS |
|---|---|
| Manufacturer Part Number | 3RV1063-7CL10 |
| Manufacturer Alternate Number | 3RV10637CL10 |
| UPC | 662643851489 |
| Rated Current | 250A |
| Number of Poles | 3 |
| Mounting Type | Any |
| Electrical Connection | Screw Clamp |
| Operating Temperature | -20°C - +60°C |
| Duty Cycles | 20,000 |
| IP Rating | IP20 |
| Type | Molded Case Circuit Breaker |
| Height (mm) | 205mm |
| Width (mm) | 105mm |
| Depth (Length) (mm) | 103.5mm |
| Weight (lbs) | 8.55 |
| UOM | ea |
