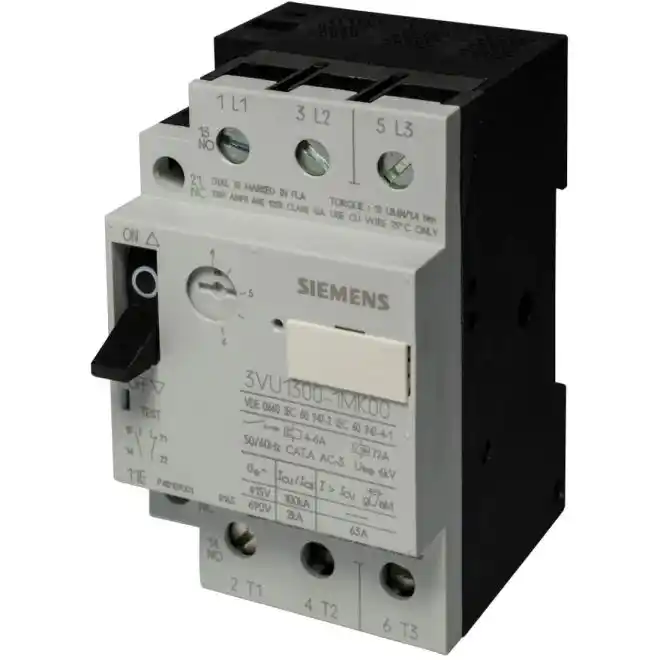

SIEMENS 3VU1300-1MK00 Circuit Breakers 4A-6A, 72A
SKU#:
138058
SIEMENS 3VU13/3VU16 is suitable for use in fuseless motor feeders upto 11KW/22KW (25A/63A) respectively. 3VU1300-1MK00 motor protection circuit breakers are used for protection of motor against overload, single phasing and short-circuit faults. The breaker has a toggle switch for ease of operation and can be offered with auxiliary contacts, trip indicating contacts, U/V or Shunt release. High breaking capacity of 100kA is available in 3VU13 upto 6A and in 3VU16 upto 25A.
| Brand | SIEMENS |
|---|---|
| Manufacturer Part Number | 3VU1300-1MK00 |
| Manufacturer Alternate Number | 3VU13001MK00 |
| UPC | 75455421232 |
| Rated Voltage | 690V |
| Rated Current | 4A - 6A |
| Electrical Connection | Screw Terminals |
| Number of Poles | 3 |
| Type | Circuit Breaker |
| HP | 3-Phase: 1hp at 200VAC/208VAC, 1.5hp at 220VAC/230VAC, 3hp at 460VAC/480VAC, 3hp at 575VAC/600VAC |
| Weight (lbs) | 0.62 |
| UOM | ea |
