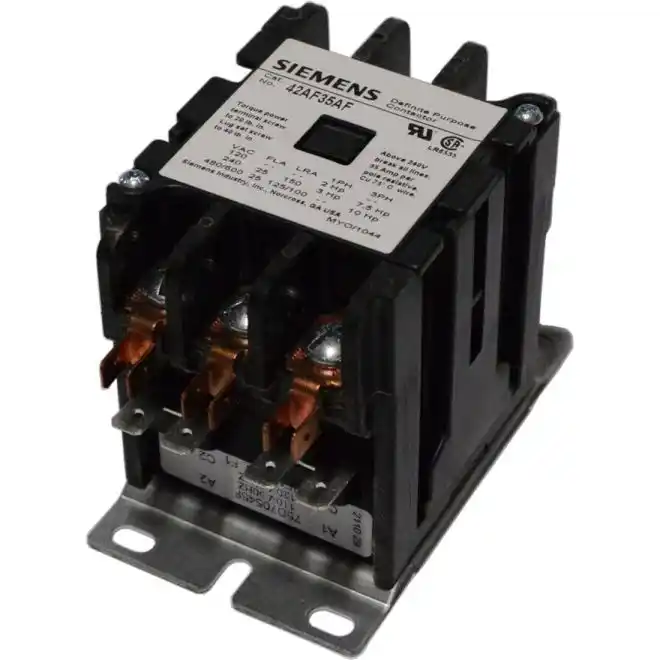

Furnas 42AF35AF 120VAC Definite Purpose Contactors
SKU#:
124867
Furnas Class 45 and 42 DP Contactors have industry standard mounting but they offer so much more. SIEMENS 42AF35AF definite purpose contactors with their compact sizing save space allowing for smaller panels, more wiring room, and easy retrofits. The quick connect for power and control wires reduce installation and retrofit times. In order to reduce maintenance, provide longer life, and improve performance the SIEMENS DP contactor family has a fully encapsulated body to reduce the penetration of dust and other contaminants. Other features include visual contact position indication, weld-resistant silver cadmium oxide contacts, Class F coil insulation and quiet operation.
| Brand | SIEMENS |
|---|---|
| Manufacturer Part Number | 42AF35AF |
| UPC | 783087145016 |
| Rated Voltage | 400VAC |
| Coil Voltage | 110VAC - 120VAC |
| Rated Current | 25A |
| Rated Load (Resistive) | 35A |
| Number of Poles | 3 |
| Mounting Type | DIN-35 Rail |
| Electrical Connection | Screw Terminals |
| HP | 5hp at 240VAC, 7.5hp at 480VAC, 7.5hp at 600VAC |
| Type | Class 42 |
| Weight (lbs) | 0.38 |
| UOM | ea |
