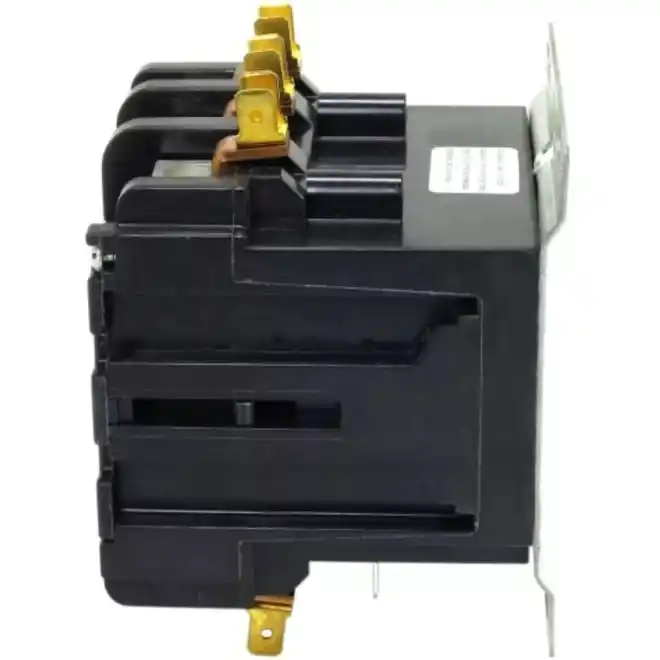

Furnas 42DF15AJ 24VAC Definite Purpose Contactors
SKU#:
159116
Furnas Class 45 and 42 DP Contactors have industry standard mounting but they offer so much more. SIEMENS 42DF15AJ definite purpose contactors with their compact sizing save space allowing for smaller panels, more wiring room, and easy retrofits. The quick connect for power and control wires reduce installation and retrofit times. In order to reduce maintenance, provide longer life, and improve performance the SIEMENS DP contactor family has a fully encapsulated body to reduce the penetration of dust and other contaminants. Other features include visual contact position indication, weld-resistant silver cadmium oxide contacts, Class F coil insulation and quiet operation.
| Brand | SIEMENS |
|---|---|
| Manufacturer Part Number | 42DF15AJ |
| UPC | 783087165144 |
| Rated Voltage | 400VAC |
| Coil Voltage | 24VAC |
| Rated Current | 50A |
| Rated Load (Resistive) | 63A |
| Number of Poles | 2 |
| Mounting Type | DIN-35 Rail |
| Electrical Connection | Screw Terminals |
| HP | 3hp at 120VAC, 10hp at 240VAC |
| Type | Class 42 |
| Weight (lbs) | 1.13 |
| UOM | ea |
