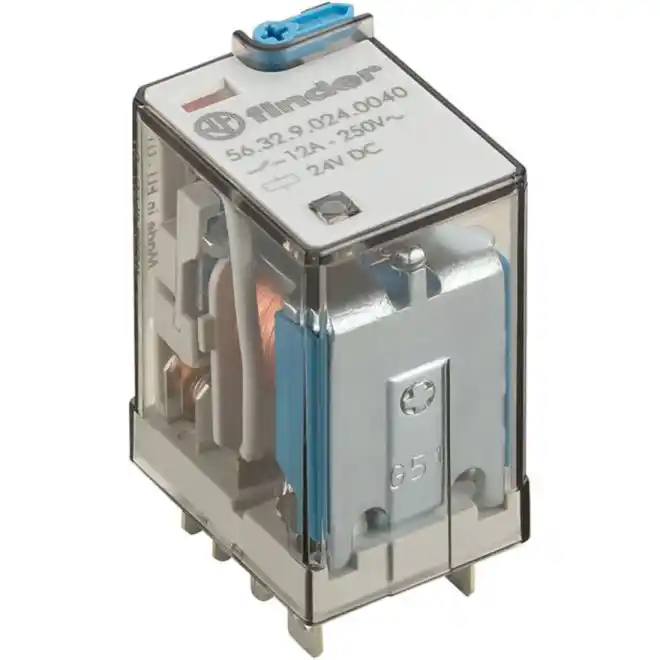

finder 56.32.9.024.0040 Plug-in 2-Pole Relay
SKU#:
126265
Finder 56.32.9.024.0040 is a 12A 2-pole (2P) miniature plug-in power relay with 24V DC coil. 2CO (2PDT - Double pole double throw) contact configuration, coil EMC suppression. Finder 56 Series power relays are compatible with 96 series sockets. AgNi (Silver Nickel) cadmium-free contact. Lockable test button and mechanical indicator. Applications include general switchboard installations, industrial automation panels, auxiliary relays, interfacing. Finder 56.32.9.024.0040 is comparable to Schneider Magnecraft 782XBXC-24D, W78RCSX-8, Omron LY2-DC24, TURCK Releco C7-A20/024VDC, IDEC RH2B-U-DC24, Relpol Altech RY2-1012-26-1024, TE Connectivity Tyco Schrack Potter & Brumfield K10P11D15-24D, TM010024, Allen Bradley 700-HF32Z24.
| Brand | finder |
|---|---|
| Manufacturer Part Number | 56.32.9.024.0040 |
| UPC | 8012823098197 |
| Coil Voltage | 24VDC |
| Contact Arrangement | DPDT (2 Form C) |
| Terminal Type | Plug-in, Quick Connect |
| Mounting Type | Base/Socket |
| Indicator | Mechanical |
| Test Button | Yes |
| Max. Switching Voltage | 400 VAC |
| Max. Switching Current | 20 A |
| Rated Current | 12A |
| Max. Switching Power(Resistive) | 3,000VA |
| Max. Switching Power (Inductive) | 700VA |
| Minimum Load | 500mW |
| Operating Temperature | -40°C - +70°C |
| RoHS Compliant | Yes |
| Duty Cycles | 1,000,000 |
| Height (mm) | 42.8mm |
| Width (mm) | 27.7mm |
| Depth (Length) (mm) | 20.7mm |
| Weight (lbs) | 0.08 |
| UOM | ea |
