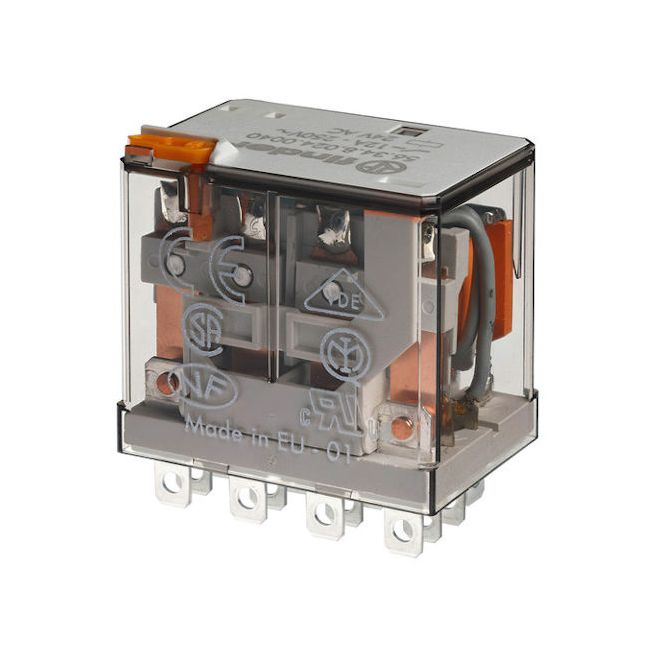

finder 56.34.8.240.0000 Plug-in 4-Pole Relay
SKU#:
205915
Finder 56.34.8.240.0000 is a 12A 4-pole (4P) miniature plug-in power relay with 240V AC coil. 4CO (4PDT - Four pole double throw) contact configuration, coil EMC suppression. Finder 56.34.8.240.0000 power relays are compatible with 96 series sockets. AgNi (Silver Nickel) cadmium-free contact. European patent. Applications include general switchboard installations, industrial automation panels, auxiliary relays, interfacing.
| Brand | finder |
|---|---|
| Manufacturer Part Number | 56.34.8.240.0000 |
| UPC | 8012823249575 |
| Coil Voltage | 24VAC |
| Contact Arrangement | 4PDT (4 Form C) |
| Terminal Type | Plug-in, Quick Connect |
| Mounting Type | Base/Socket |
| Max. Switching Voltage | 400 VAC |
| Max. Switching Current | 20 A |
| Rated Current | 12A |
| Max. Switching Power(Resistive) | 3,000VA |
| Max. Switching Power (Inductive) | 700VA |
| Minimum Load | 500mW |
| Operating Temperature | -40°C - +70°C |
| RoHS Compliant | Yes |
| Duty Cycles | 1,000,000 |
| Height (mm) | 42.8mm |
| Width (mm) | 40.8mm |
| Depth (Length) (mm) | 27.7mm |
| Weight (lbs) | 0.15 |
| UOM | ea |
