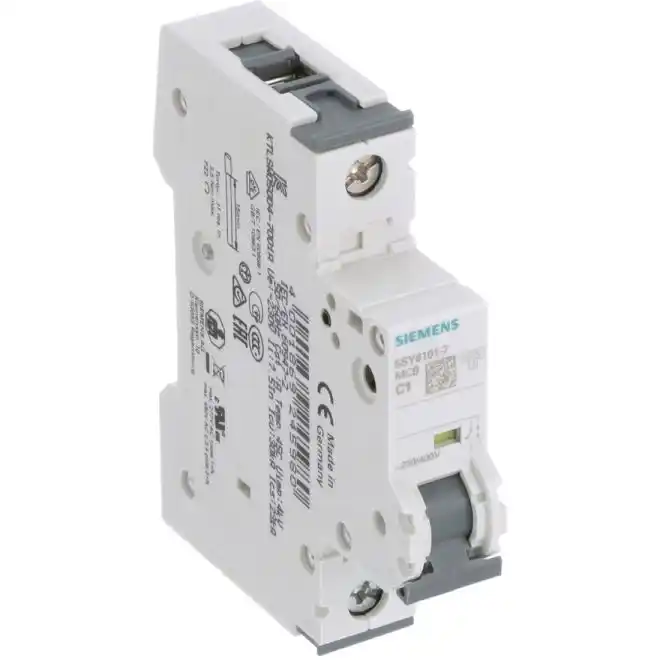

SIEMENS 5SY6101-7 Miniature Circuit Breaker 1-Pole
SKU#:
607795
SIEMENS 5SY6101-7 miniature circuit breakers are used to protect plants in buildings and infrastructures for industrial applications. The devices can be used as main control switches for disconnecting or isolating plants. The devices are approved for worldwide use according to IEC standards for systems up to 250/440 VAC. 60 VDC per pole is permitted in DC systems. For North America, SIEMENS also has additional certification to UL 1077 for use as "supplementary protectors" in systems up to 480Y/277 VAC.
| Brand | SIEMENS |
|---|---|
| Manufacturer Part Number | 5SY6101-7 |
| Manufacturer Alternate Number | 5SY61017 |
| UPC | 4001869245980 |
| Rated Voltage | 400VAC |
| Rated Current | 1A |
| Number of Poles | 1 |
| Mounting Type | DIN Rail |
| Electrical Connection | Screw Clamp |
| Operating Temperature | -25°C - +55°C |
| Rated Voltage DC | 72VDC |
| Trip Characteristic | Class C |
| Duty Cycles | 10,000 |
| IP Rating | IP20 |
| Type | Miniature Circuit Breaker |
| Height (mm) | 90mm |
| Width (mm) | 18mm |
| Depth (Length) (mm) | 76mm |
| Weight (lbs) | 0.34 |
| UOM | ea |
