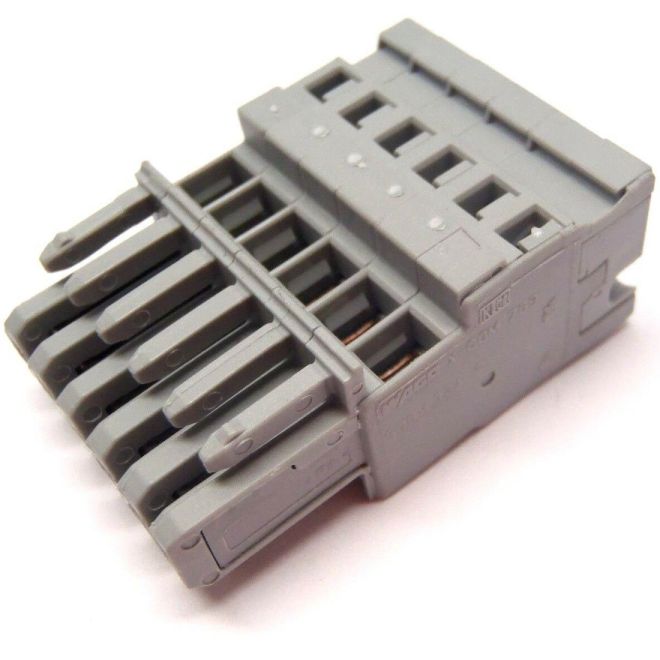

WAGO 769-106 X-COM 1-Conductor Female Plugs Gray
SKU#:
60983
The WAGO 769-106 X-COM®S-SYSTEM is available in two different cross-sections (2020 and 2022 Series). It is compatible with our TOPJOB®S Rail-Mount Terminal Blocks and the wide range of accessories from the TOPJOB®S Rail-Mount Terminal Block family. Advantages include: Terminate conductors up to 1.5 mm2 (16 AWG) in a terminal block width of just 3.5 mm (0.138 inch) and up to 4 mm2 (12 AWG) in a width of just 5.2 mm (0.205 inch), Push-in CAGE CLAMP® for fast wiring, Push-in termination of solid and stranded conductors, as well as fine-stranded conductors with ferrules, Prevent mismating by coding groups with the same pole numbers, Secure female plugs via locking levers and strain relief plates.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 769-106 |
| Manufacturer Alternate Number | 51128258 |
| UPC | 4044918471510 |
| Electrical Connection | CAGE CLAMP® |
| Actuation Type | Operating Tool |
| Fine-Stranded Conductor Wire Range | 0.08mm2 - 4mm2 / 28 - 12 AWG |
| Strip Length | 8mm - 9mm / 0.31 - 0.35 inch |
| Total Number of Connection Points | 6 |
| Total Number of Potentials | 6 |
| Color | Gray |
| Number of Poles | 6 |
| Height (mm) | 45.2mm / 1.78 inch |
| Width (mm) | 30mm / 1.181 inch |
| Depth (Length) (mm) | 18.3mm / 0.72 inch |
| Weight (lbs) | 0.04 |
| UOM | ea |
