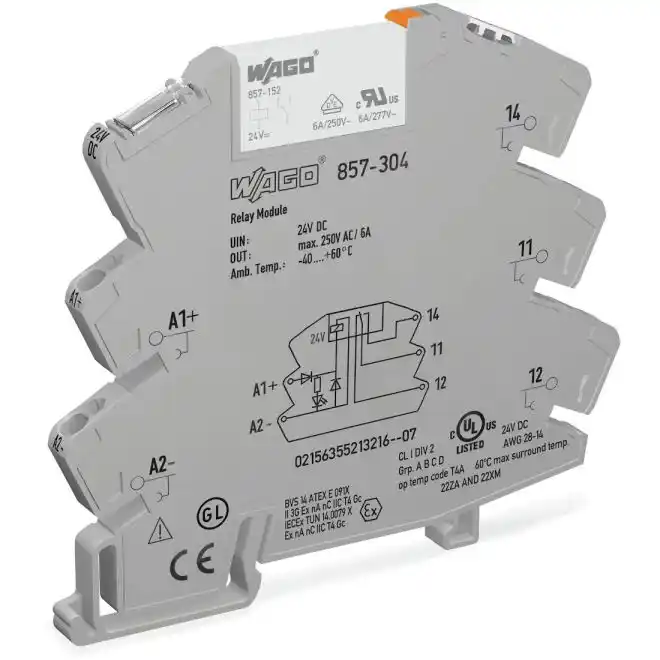

WAGO 857-304 Relay Modules Voltage 24VDC 6A Gray
SKU#:
374821
With a common profile and 6mm wide housing, WAGO 857-304 relays and optocouplers provide a pow-erful compact solution for switching applications. An optional interface adapter plugs into the input or output side, combining eight modules to reduce wiring time and errors. Features include: Pluggable relays or optocouplers, Jumpering capabilities, LED indication, Wide input voltage range (5VAC - 230VAC/5VDC - 230VDC versions), Up to 6 A switching current, Marking options, Can be used with 857 Series signal conditioners.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 857-304 |
| Manufacturer Alternate Number | 51285597 |
| UPC | 4050821797807 |
| Coil Voltage | 24VDC |
| Mounting Type | DIN-35 Rail |
| Max. Switching Voltage | 250 VAC |
| Rated Load (Resistive) | 20A |
| Max. Switching Power(Resistive) | 1,500VA |
| Minimum Load | 10mA at 10V; 1mA at 24V |
| Operating Temperature | -40°C - +60°C |
| RoHS Compliant | Yes |
| Duty Cycles | 50,000,000 |
| Height (mm) | 81mm / 3.189 inch |
| Width (mm) | 6mm / 0.236 inch |
| Depth (Length) (mm) | 94mm / 3.701 inch |
| Weight (lbs) | 0.07 |
| UOM | ea |
