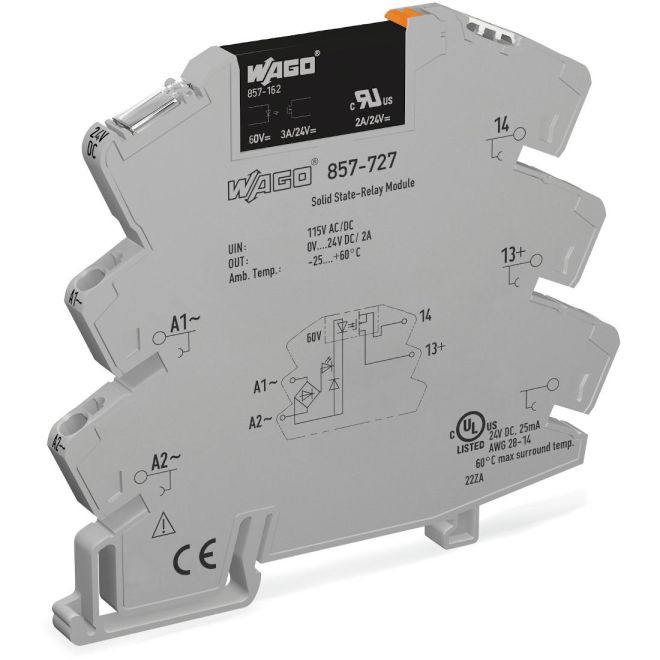

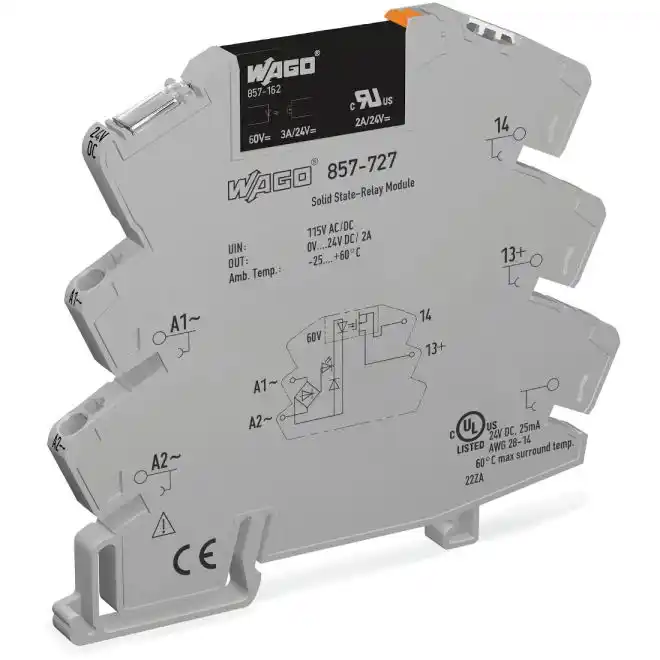

WAGO 857-727 Solid-State Relay Modules Gray
SKU#:
420131
With a common profile and 6mm wide housing, WAGO 857-727 relays and optocouplers provide a pow-erful compact solution for switching applications. An optional interface adapter plugs into the input or output side, combining eight modules to reduce wiring time and errors. Features include: Pluggable relays or optocouplers, Jumpering capabilities, LED indication, Wide input voltage range (5VAC - 230VAC/5VDC - 230VDC versions), Up to 6 A switching current, Marking options, Can be used with 857 Series signal conditioners.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 857-727 |
| Manufacturer Alternate Number | 8570727 |
| UPC | 4045454835569 |
| Supply Voltage Range | 115VAC, 115VDC |
| Indicator | LED |
| Inrush Current | 15A (10ms) |
| Mounting Type | DIN-35 Rail |
| Height (mm) | 81mm / 3.189 inch |
| Width (mm) | 6mm / 0.236 inch |
| Depth (Length) (mm) | 94mm / 3.701 inch |
| Weight (lbs) | 0.07 |
| UOM | ea |
