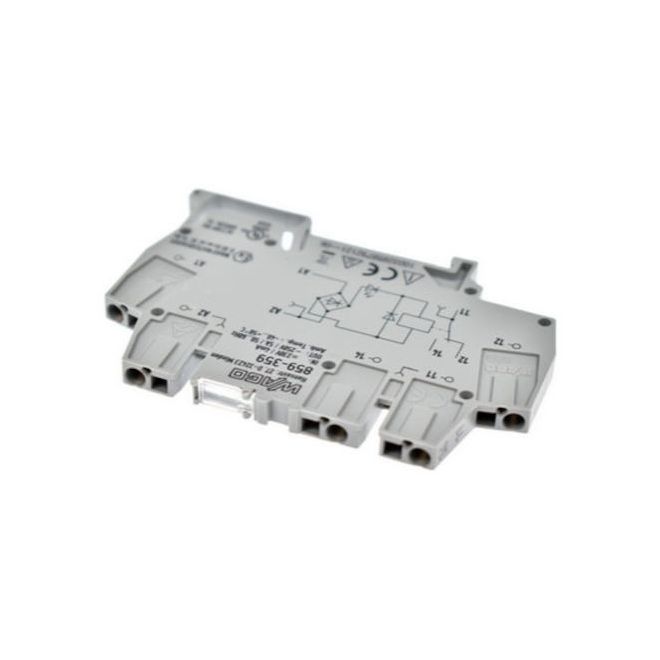

WAGO 859-359 Relay Modules Voltage 230VAC Gray
SKU#:
310143
With a large variety of relays and optocouplers, WAGO 859-359 will suit any industrial interface application. The compact housing is ideal for space-restricted control panels. Simple commoning at the control and load-side level saves valuable wiring time and reduces errors. Features include: 6 mm wide housing for DIN rail mounting, Jumpering capabilities, LED indication, Integrated test port at each termination, Marking options, Custom solutions available - please contact Bolen's Control House.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 859-359 |
| Manufacturer Alternate Number | 60335553 |
| UPC | 4055143604185 |
| Mounting Type | DIN-35 Rail |
| Indicator | LED |
| Max. Switching Voltage | 250 VAC |
| Rated Load (Resistive) | 20A |
| Max. Switching Power(Resistive) | 1,250VA |
| Minimum Load | 1V / 1mA / 1mW |
| Operating Temperature | -40°C - +50°C |
| RoHS Compliant | Yes |
| Duty Cycles | 50,000,000 |
| Height (mm) | 56mm / 2.205 inch |
| Width (mm) | 6mm / 0.236 inch |
| Depth (Length) (mm) | 91mm / 3.583 inch |
| Weight (lbs) | 0.05 |
| UOM | ea |
