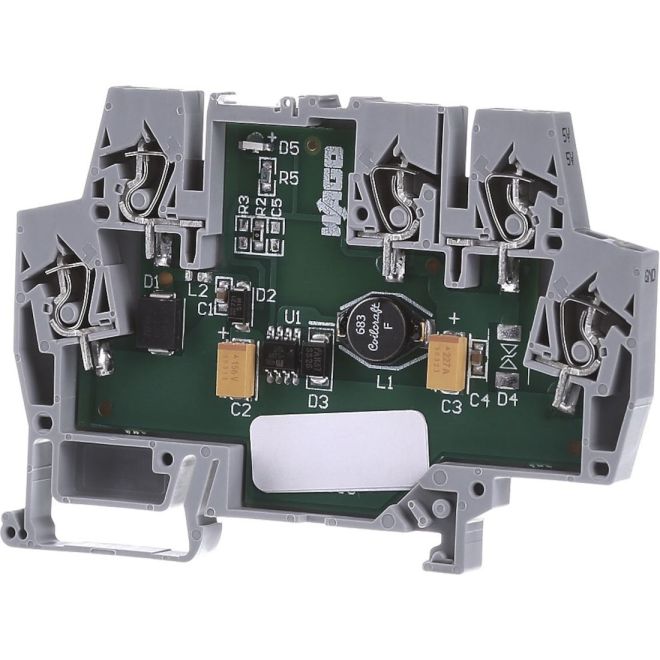

WAGO 859-801 DC/DC Converters Voltage 24VDC 0.5A
SKU#:
310177
With a large variety of relays and optocouplers, WAGO 859-801 will suit any industrial interface application. The compact housing is ideal for space-restricted control panels. Simple commoning at the control and load-side level saves valuable wiring time and reduces errors. Features include: 6 mm wide housing for DIN rail mounting, Jumpering capabilities, LED indication, Integrated test port at each termination, Marking options, Custom solutions available - please contact Bolen's Control House.
| Brand | WAGO |
|---|---|
| Manufacturer Part Number | 859-801 |
| Manufacturer Alternate Number | 51225851 |
| UPC | 4050821021568 |
| Supply Voltage Range | 24VDC |
| Output Voltage DC | 5VDC |
| Output Current | 0.5A |
| Electrical Connection | CAGE CLAMP® |
| Mounting Type | DIN-35 Rail |
| Series Operation | No |
| Standards | CE |
| Height (mm) | 56mm / 2.205 inch |
| Width (mm) | 6mm / 0.236 inch |
| Depth (Length) (mm) | 91mm / 3.583 inch |
| Weight (lbs) | 0.08 |
| UOM | ea |
