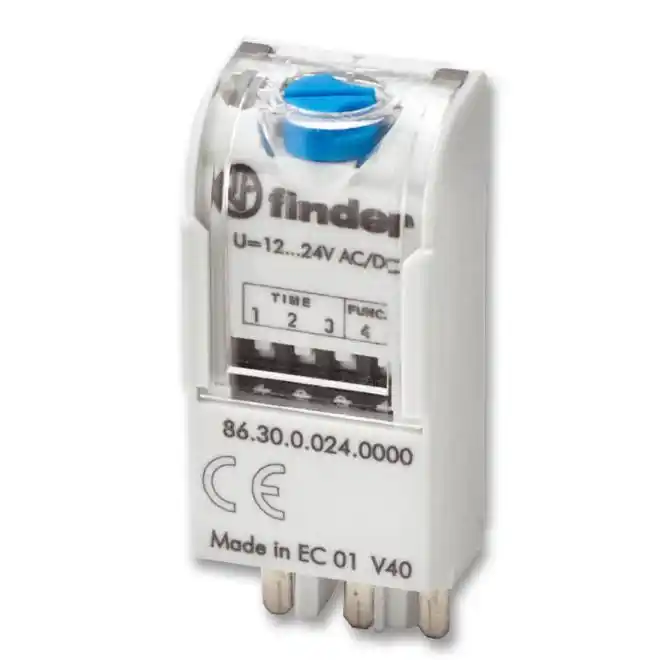

finder 86.30.0.024.0000 Bi-Function Timer Module
SKU#:
570080
Finder 86.30.0.024.0000 from Finder is a bi-function (ON-pulse or ON delay) and multi voltage timer module. Finder 86.30.0.024.0000 can be plugged in for use with 90.02, 90.03, 92.03, 94.02, 94.03, 94.04, 95.03, 95.05, 95.55, 97.01, 97.02, 97.51 and 97.52 sockets. Applications include machines for paper processing, printing machines, machines for ceramics, packaging machines, wood processing machines, milk-processing machines, textile machines, control panels.
| Brand | finder |
|---|---|
| Manufacturer Part Number | 86.30.0.024.0000 |
| UPC | 8012823310695 |
| Supply Voltage Range | 12VAC/12VDC - 24VAC/24VDC |
| Time Ranges | 0.05Sec - 100Hrs |
| ON-Delay Mode | Yes |
| Interval Mode | Yes |
| Input Type | Voltage Input |
| Mounting Type | Base/Socket |
| Electrical Connection | Plug-in Connector |
| Height (mm) | 36.4mm |
| Width (mm) | 15.5mm |
| Depth (Length) (mm) | 15.1mm |
| Weight (lbs) | 0.05 |
| UOM | ea |
