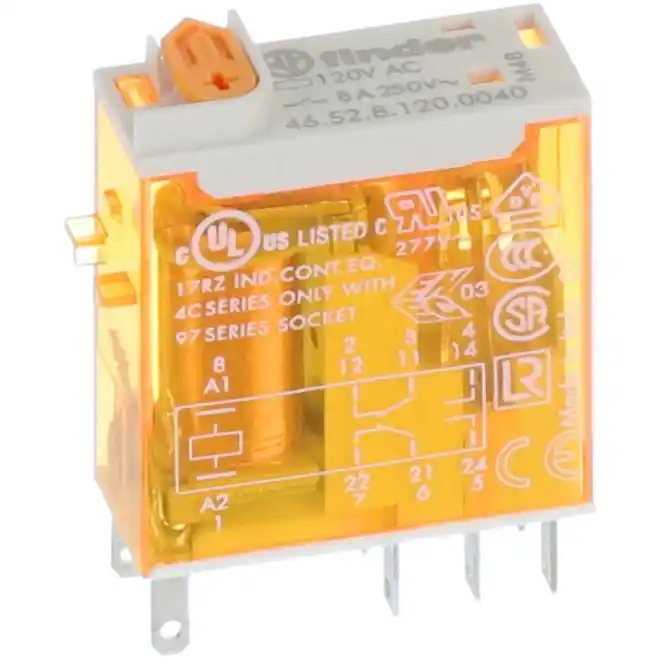

finder 46.52.8.120.0040 Miniature Industrial Relay
SKU#:
316163
Finder 46.52.8.120.0040 is a 8A 2-pole (1P) miniature industrial relay with 120VAC coil. Compatible with 97 series sockets. This relay has 2CO (DPDT - Double pole double throw) cadmium-free AgNi (Silver Nickel) contacts. 5mm contact pin pitch. Multi-function, suitable for a wide range of applications. Due to their versatility they are widely used in electronic circuit boards for household appliances (refrigerators, washing machines), electric gates, boiler control boards and similar.
| Brand | finder |
|---|---|
| Manufacturer Part Number | 46.52.8.120.0040 |
| UPC | 8012823304885 |
| Coil Voltage | 120VAC |
| Contact Arrangement | DPDT (2 Form C) |
| Terminal Type | Plug-in |
| Max. Switching Voltage | 440 VAC |
| Max. Switching Current | 15 A |
| Rated Current | 8A |
| Max. Switching Power(Resistive) | 2,000VA |
| Max. Switching Power (Inductive) | 350VA |
| Minimum Load | 300mW |
| Operating Temperature | -40°C - +70°C |
| RoHS Compliant | Yes |
| Duty Cycles | 1,000,000 |
| Height (mm) | 39.3mm |
| Width (mm) | 29mm |
| Depth (Length) (mm) | 12.4mm |
| Weight (lbs) | 0.04 |
| UOM | ea |
