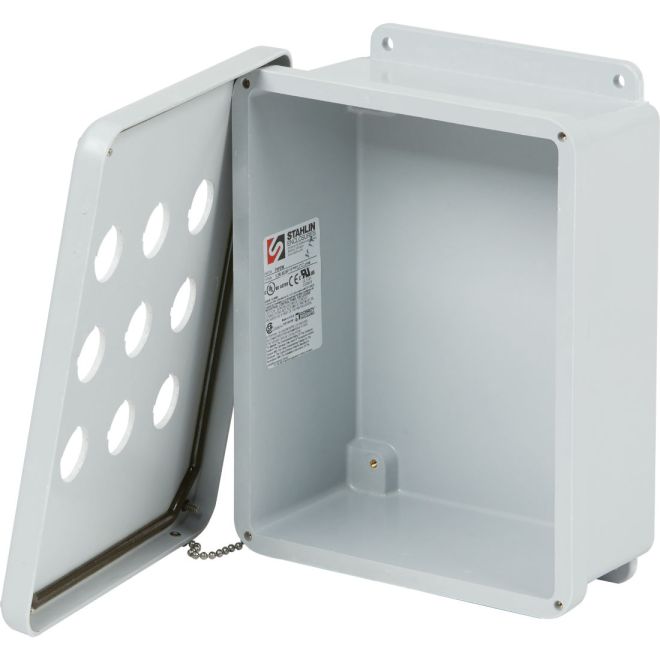

STAHLIN 9PBW 10 x 8 x 4 Inches Fiberglass Enclosure
SKU#:
30415
STAHLIN F9PBW alternate configuration is the multi-hole design which has a integral flange mount and back panel capabilities. The pushbutton series is ideal for high density pushbutton mounting and can accommodate up to nine operators on a single cover. This multi-hole design is compatible with 30mm configuration components.
| Brand | ROBROY |
|---|---|
| Manufacturer Part Number | 9PBW |
| Manufacturer Alternate Number | F9PBW |
| Material | Fiberglass-Reinforced Thermoplastic Polyester (PBT), Polyamide, ABS |
| Color | Gray |
| UL Rating Type | NEMA 1, NEMA 3R, NEMA 4, NEMA 12 |
| Supply Includes | 4 cover screws, lift off cover |
| Material Thickness | 6mm |
| Type | Enclosure |
| Door Cover Style | Lift-Off |
| Hole Diameter | 30mm |
| Number of Holes | 9 |
| Height (mm) | 295mm (11.63") |
| Width (mm) | 239mm |
| Depth (Length) (mm) | 108mm |
| Weight (lbs) | 5 |
| UOM | ea |
