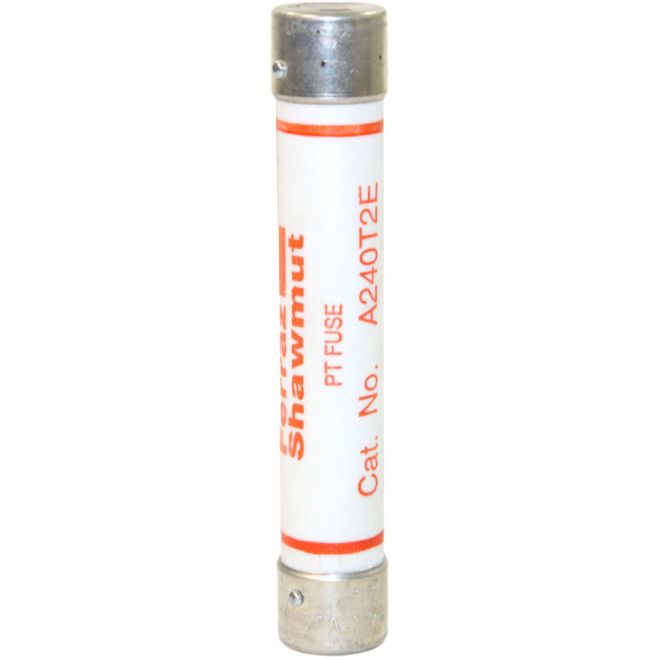

Mersen A240T2E Potential Transformer Fuse
SKU#:
27656
Mersen PT fuses are current-limiting fuses with high interrupting rating, used for the primary winding protection of potential transformer. A240T2E fuses are small dimension ferrule type fuses and mount in standard clips. Current ratings are from 0.25A to 5A. Ferraz Shawmut A240T2E is comparable to Westinghouse 2123A19G01 677C592G04, Eaton Cooper Bussmann JCD-2E, Littelfuse 2E-4PT-2.4, GE 9F60AAB002.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | A240T2E |
| Manufacturer Alternate Number | A214383 |
| UPC | 782001800437 |
| Rated Voltage AC | 2400VAC |
| Rated Current | 2A |
| Mounting Type | Clip |
| Short Circuit Current Rating (SCCR) | 50kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Terminal Type | Ferrule |
| Body/Insulating Material | GMG |
| Type | Medium Voltage |
| Height (mm) | 21mm (0.83") |
| Width (mm) | 21mm |
| Depth (Length) (mm) | 118mm |
| Weight (lbs) | 0.28 |
| UOM | ea |
