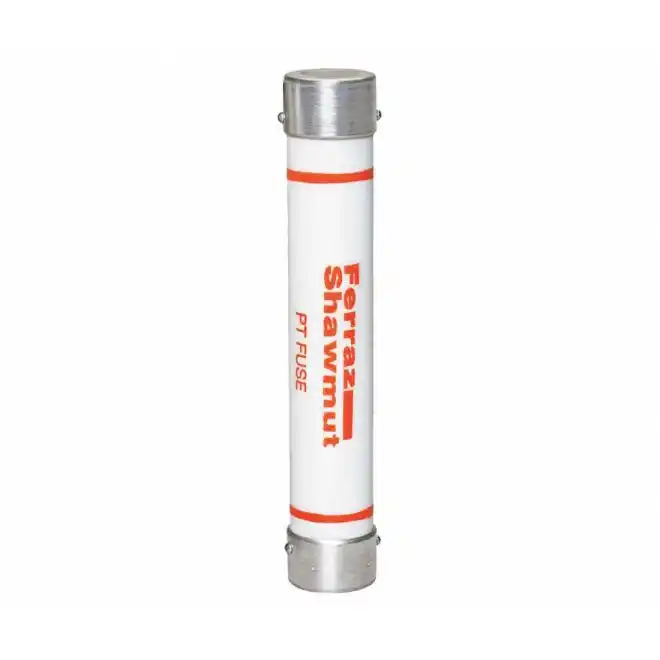

Mersen A500T3E-1 Potential Transformer Fuse
SKU#:
27657
Mersen PT fuses are current-limiting fuses with high interrupting rating, used for the primary winding protection of potential transformer. A500T3E-1 fuses are small dimension ferrule type fuses and mount in standard clips. Current ratings are from 0.25A to 5A. Ferraz Shawmut A500T3E-1 is comparable to Eaton Cutler Hammer 317B487H04.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | A500T3E-1 |
| Manufacturer Alternate Number | G222715 |
| UPC | 782001800758 |
| Rated Voltage AC | 5000VAC |
| Rated Current | 3A |
| Mounting Type | Clip |
| Short Circuit Current Rating (SCCR) | 50kA |
| Connection/Terminal Material | Tin-Plated Brass |
| Terminal Type | Ferrule |
| Body/Insulating Material | GMG |
| Type | Medium Voltage |
| Height (mm) | 26mm |
| Width (mm) | 26mm |
| Depth (Length) (mm) | 143mm |
| Weight (lbs) | 0.50 |
| UOM | ea |
