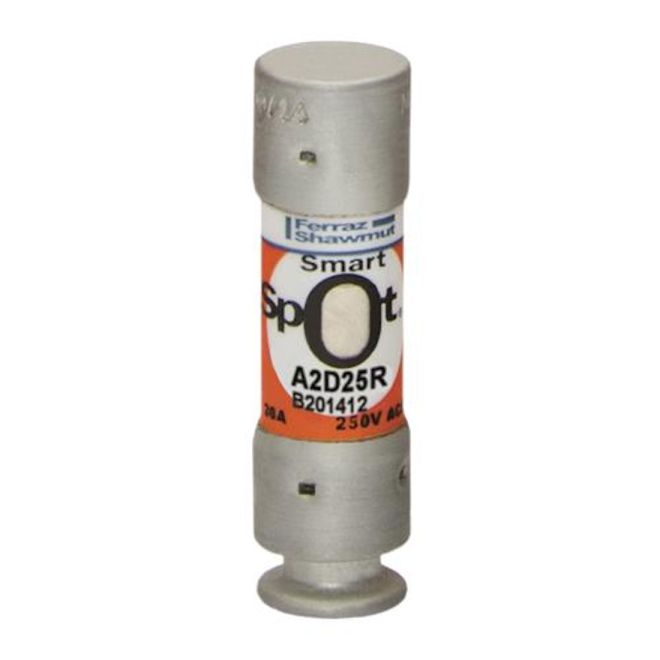

Mersen A2D25R Ferraz Time Delay/Class RK1 Fuse

SKU#:

109276

Mersen Amp-Trap 2000® SmartSpot® A2D-R and A6D-R fuses feature a visual open fuse indicator and provide IEC Type 2 No Damage protection to main, feeder, and branch circuits for all types of loads. With time-delay characteristics for handling harmless inrush currents, current-limiting ability and a wide range of ratings (from 1 to 600 Amperes), A2D25R and A6D-R fuses give excellent protection for all your applications. Ferraz Shawmut A2D25R is comparable to Eaton Cooper Bussmann LPN-RK-25SP.
Specifications
Brand Mersen / Ferraz Shawmut / Gould
Manufacturer Part Number A2D25R
Manufacturer Alternate Number B201412
UPC 782001990855
Rated Voltage AC 250VAC
Rated Voltage DC 250VDC
Rated Current 25A
RoHS Compliant Yes
Fuse Class RK1
Speed/Characteristic Time Delay
Mounting Type Clip
Short Circuit Current Rating (SCCR) 200kA
Indicator SmartSpot®
Connection/Terminal Material Tin-Plated Copper
Terminal Type Ferrule
Body/Insulating Material Poly Tube
Type Time Delay
Height (mm) 15mm
Width (mm) 15mm
Depth (Length) (mm) 51mm
Weight (lbs) 0.04
UOM ea
