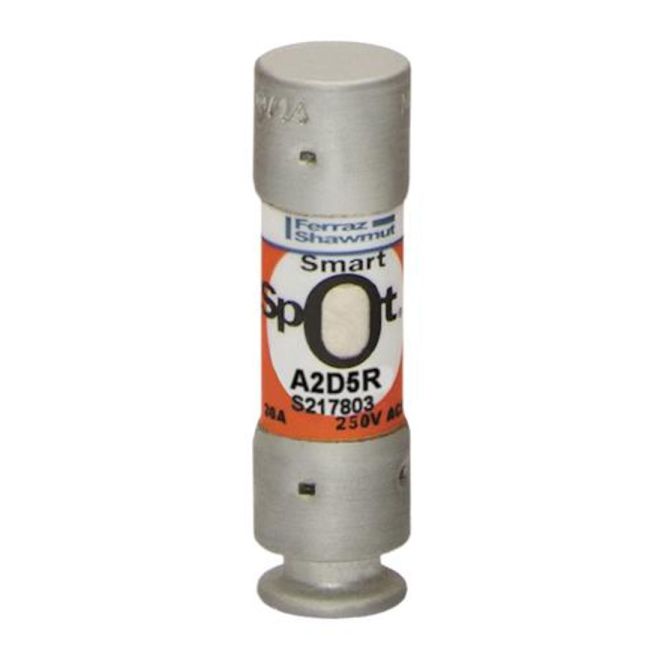

Mersen A2D5R Ferraz Time Delay/Class RK1 Fuse
SKU#:
35371
Mersen Amp-Trap 2000® SmartSpot® A2D-R and A6D-R fuses feature a visual open fuse indicator and provide IEC Type 2 No Damage protection to main, feeder, and branch circuits for all types of loads. With time-delay characteristics for handling harmless inrush currents, current-limiting ability and a wide range of ratings (from 1 to 600 Amperes), A2D5R and A6D-R fuses give excellent protection for all your applications. Ferraz Shawmut A2D5R is comparable to Eaton Cooper Bussmann LPN-RK-5SP.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | A2D5R |
| Manufacturer Alternate Number | S217803 |
| UPC | 782001990732 |
| Rated Voltage AC | 250VAC |
| Rated Voltage DC | 250VDC |
| Rated Current | 5A |
| RoHS Compliant | Yes |
| Fuse Class | RK1 |
| Speed/Characteristic | Time Delay |
| Mounting Type | Clip |
| Short Circuit Current Rating (SCCR) | 200kA |
| Indicator | SmartSpot® |
| Connection/Terminal Material | Tin-Plated Copper |
| Terminal Type | Ferrule |
| Body/Insulating Material | Poly Tube |
| Type | Time Delay |
| Height (mm) | 15mm |
| Width (mm) | 15mm |
| Depth (Length) (mm) | 51mm |
| Weight (lbs) | 0.04 |
| UOM | ea |
