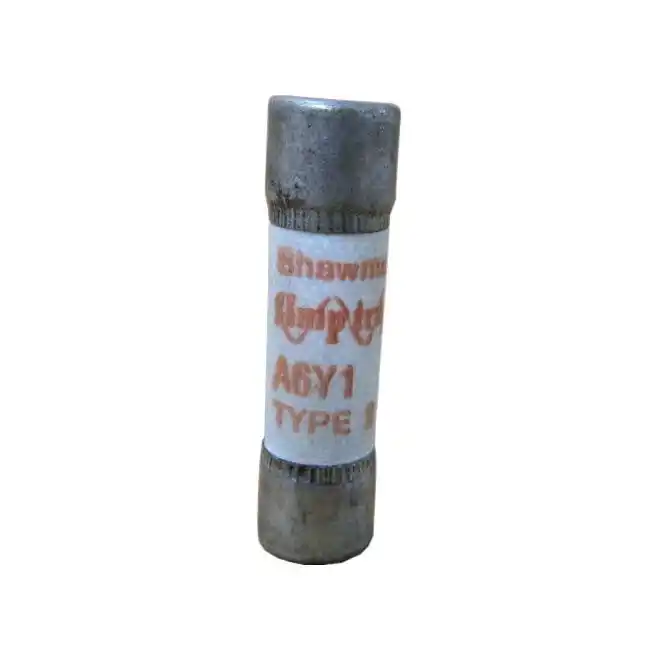

Mersen A6Y1-1 Ferraz Form 600 Special Purpose Fuse
SKU#:
35402
Mersen Form 600 fuses are the original current-limiting fuses, predating all the standards. Their 500V DC rating (through 600A) is a useful feature for special fusing applications. A6Y1-1 form 600 fuses provide a high degree of current limitation in AC and DC applications. Types 1 and 3 are dimensionally interchangeable with Class H and K fuses. Types 4 and 5 have unique rejection dimensions and are not interchangeable.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | A6Y1-1 |
| Manufacturer Alternate Number | H216828 |
| UPC | 782001902278 |
| Rated Voltage AC | 500VAC |
| Rated Voltage DC | 500VDC |
| Frequency | 50/60Hz |
| Rated Current | 1A |
| Mounting Type | Clip |
| Short Circuit Current Rating (SCCR) | 200kA |
| Connection/Terminal Material | Tin-Plated Copper |
| Terminal Type | Ferrule |
| Body/Insulating Material | GMG |
| Type | Current Limiting |
| Height (mm) | 21mm (0.83") |
| Width (mm) | 21mm |
| Depth (Length) (mm) | 127mm |
| Weight (lbs) | 0.20 |
| UOM | ea |
