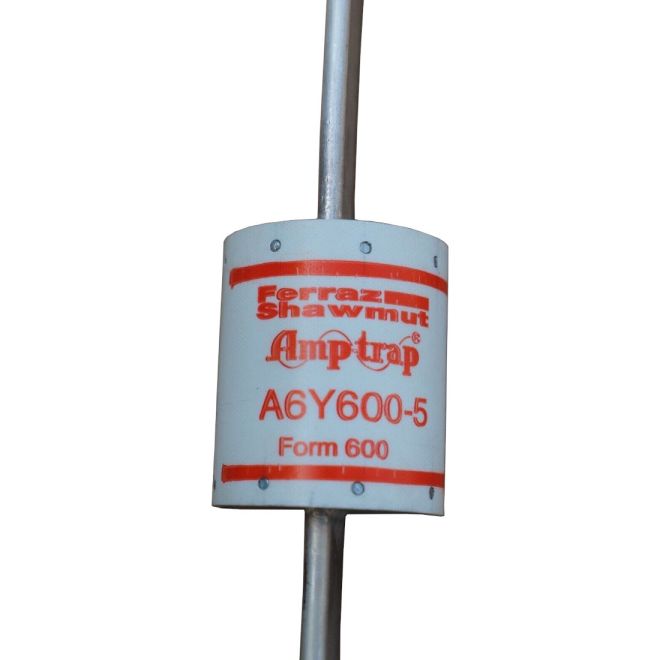

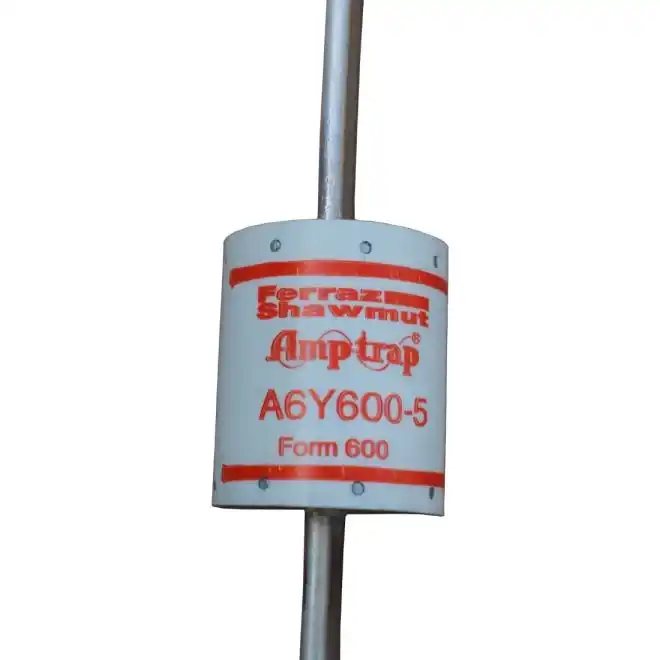

Mersen A6Y600-5 Ferraz Form 600 Special Fuse
SKU#:
110006
Mersen Form 600 fuses are the original current-limiting fuses, predating all the standards. Their 500V DC rating (through 600A) is a useful feature for special fusing applications. A6Y600-5 form 600 fuses provide a high degree of current limitation in AC and DC applications. Types 1 and 3 are dimensionally interchangeable with Class H and K fuses. Types 4 and 5 have unique rejection dimensions and are not interchangeable.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | A6Y600-5 |
| Manufacturer Alternate Number | W201982 |
| UPC | 782001908317 |
| Rated Voltage AC | 500VAC |
| Rated Voltage DC | 500VDC |
| Frequency | 50/60Hz |
| Rated Current | 600A |
| RoHS Compliant | Yes |
| Mounting Type | Clip |
| Short Circuit Current Rating (SCCR) | 200kA |
| Connection/Terminal Material | Silver-Plated Copper |
| Terminal Type | Blade |
| Body/Insulating Material | GMG |
| Type | Current Limiting |
| Height (mm) | 64mm |
| Width (mm) | 64mm |
| Depth (Length) (mm) | 386mm |
| Weight (lbs) | 4.20 |
| UOM | ea |
