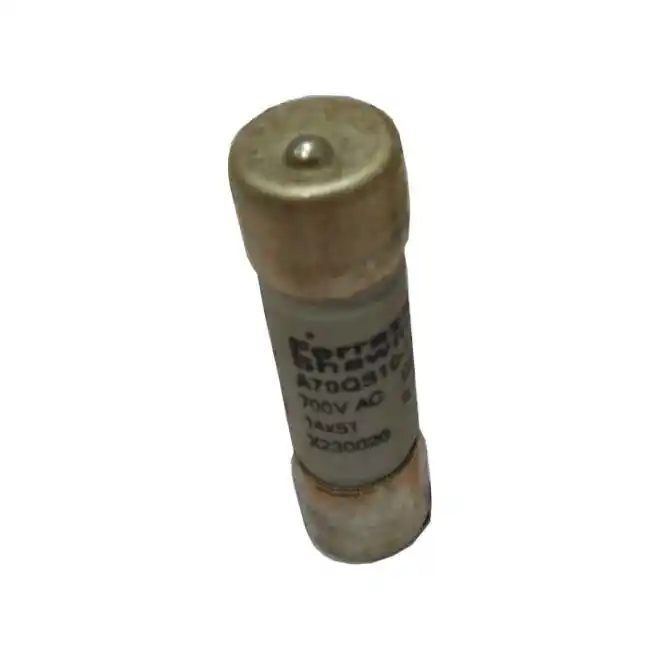

Mersen A70QS10-22F Ferraz Semiconductor Fuse
SKU#:
376789
Mersen premium Amp-trap® french cylindrical semiconductor fuses are an extension of the popular A7OQS product line. They are solid-fill 14mm and 22mm fuses, IEC rated 690VAC, 200kA Interrupting and 700VDC, 100kA interrupting at 10ms time constant. In addition, A70QS10-22F fuses have an 890 VDC rating for capacitor discharge applications up to 2.5ms time constant. All ampere ratings are available with a striker. Applications include small inverter drives and UPS systems, with superior l2t for improved protection and performance.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | A70QS10-22F |
| Manufacturer Alternate Number | M230034 |
| UPC | 782001358839 |
| Rated Voltage AC | 700VAC |
| Rated Current | 10A |
| Fuse Class | Semiconductor |
| Height (mm) | 22mm |
| Width (mm) | 22mm |
| Depth (Length) (mm) | 58mm |
| Weight (lbs) | 0.10 |
| UOM | ea |
