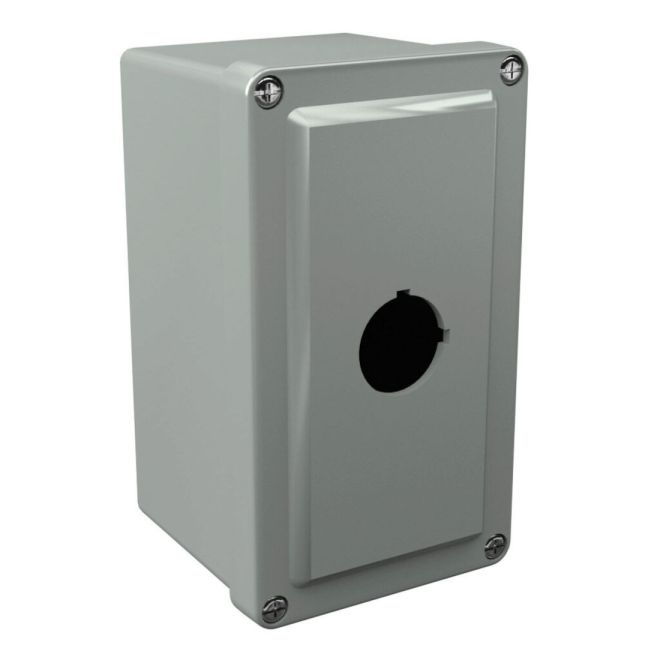

STAHLIN CF1PB 30mm In-Line Pushbutton Enclosure

STAHLIN PushButton Series CF1PB includes two separate enclosure designs, an in-line style and a multihole style configuration. The in-line includes a fiberglass and polycarbonate option while the multi-hole is designed for fiberglass. All feature a continuous polyurethane gasket that provides a complete environmental seal. A full metal grounding strap is furnished with each configuration for ease of bonding. Designed as a true pushbutton station, the in-line enclosure does not offer a provision for panel mounting. Unobstructed side-walls, captive stainless steel cover screws and a full range of sizes makes this a versatile offering. These unique in-line enclosures will house pushbuttons, switches and pilot lights in both 30mm and 22mm configurations. The alternate configuration is the multi-hole design which has a integral flange mount and back panel capabilities. This series is ideal for high density pushbutton mounting and can accommodate up to nine operators on a single cover. This multi-hole design is compatible with 30mm configuration components. Push-Button Series enclosures are designed for general electrical and electronic applications and any application that has associated environmental concerns.
