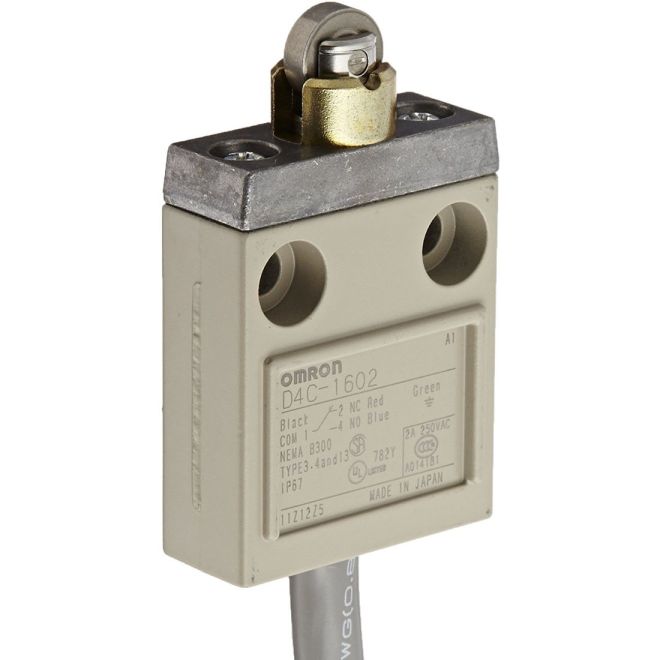

Omron D4C-1602 Enclosed Switch D4C Roller Plunger
SKU#:
3645
The 16mm flat and compact size make Omron D4C-1602 range of limit switches very popular for all standard applications but especially where mounting space is limited or protruding housings may interfere with machine operation. The triple sealed construction, the rugged metal housing and the precisely manufactured movable parts ensure long operational life in standard or oily environments (special models). Omron D4C-1602 is comparable to Honeywell 914CE23A, 914CE2-3K, 914CE2-3.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | D4C-1602 |
| Manufacturer Alternate Number | D4C1602 |
| UPC | 4536853210724 |
| Terminal Type | Pre-Wired |
| Rated Current | 5A at 250 VAC, 4A at 30 VDC |
| Actuator Type | Roller Plunger |
| Switch Type | SPDT |
| Electrical Operations Minimum | 10,000,000 Operations |
| Mechanical Operations Minimums | 200,000 Operations |
| Mounting Type | Chassis 5.1mm Hole |
| IP Rating | IP67 |
| Special Function | SJT(O) (3m) Cable |
| Type | Enclosed |
| Indicator | No |
| Height (mm) | 67mm |
| Width (mm) | 40mm |
| Depth (Length) (mm) | 16mm |
| Weight (lbs) | 1.19 |
| UOM | ea |
