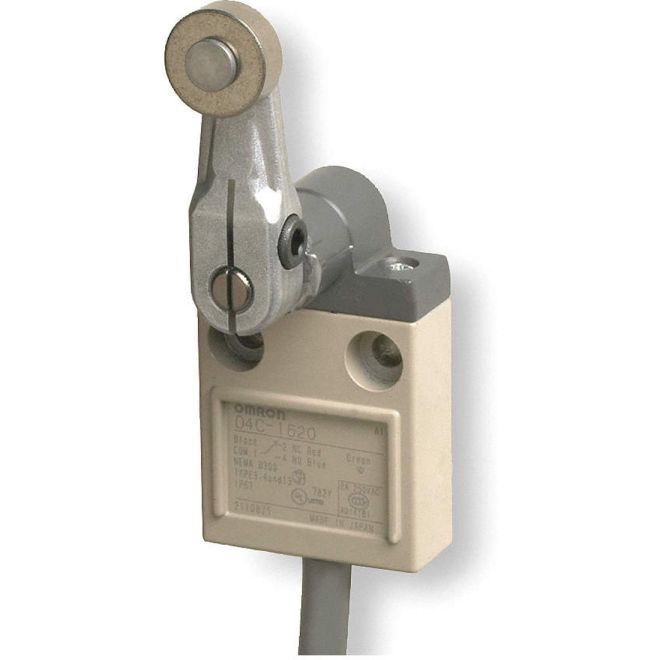

Omron D4C-1620 Enclosed Switches D4C Roller Lever
SKU#:
3647
The 16mm flat and compact size make Omron D4C-1620 range of limit switches very popular for all standard applications but especially where mounting space is limited or protruding housings may interfere with machine operation. The triple sealed construction, the rugged metal housing and the precisely manufactured movable parts ensure long operational life in standard or oily environments (special models). Omron D4C-1620 is comparable to Schneider Square D 9007MS04S0100, Honeywell 914CE16-3.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | D4C-1620 |
| Manufacturer Alternate Number | D4C1620 |
| UPC | 4536853210762 |
| Terminal Type | Pre-Wired |
| Rated Current | 5A at 250 VAC, 4A at 30 VDC |
| Actuator Type | Roller Lever |
| Switch Type | SPDT |
| Electrical Operations Minimum | 10,000,000 Operations |
| Mechanical Operations Minimums | 200,000 Operations |
| Mounting Type | Chassis 5.1mm Hole |
| IP Rating | IP67 |
| Special Function | SJT(O) (3m) Cable |
| Type | Enclosed |
| Indicator | No |
| Height (mm) | 102.7mm |
| Width (mm) | 40mm |
| Depth (Length) (mm) | 16mm |
| Weight (lbs) | 1.19 |
| UOM | ea |
