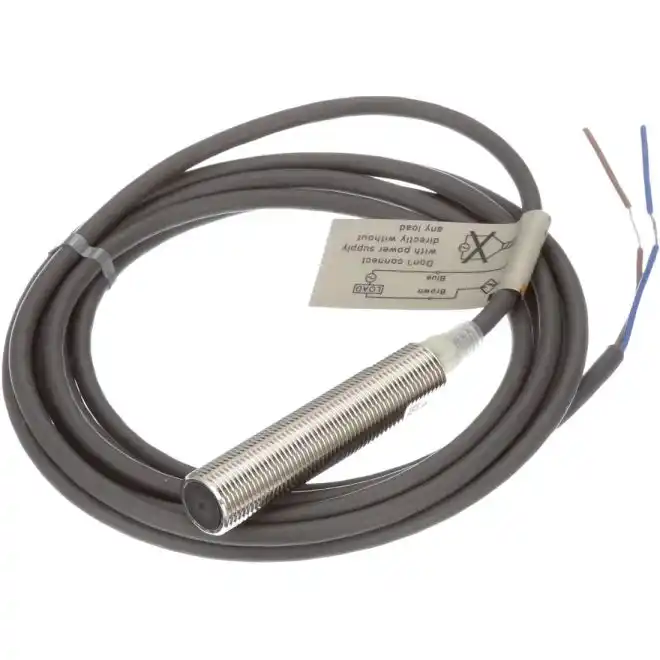

Omron E2E2-X2Y1-US M12 Proximity Sensor
SKU#:
4384
Omron E2E2 solid potted internal circuitry withstands shocks and water washdown to IP67. Do not tighten the nut with excessive force. A washer must beused with the nut. Thick nickel-plated brass barrel of E2E2-X2Y1-US has wrench flats for easy installation. When mounting the E2E2 within a metal panel, ensure that the clearances recommended are maintained. Omron E2E2-X2Y1-US is comparable to Honeywell 923AA2XMA7TL, 973AA2XMA7TL, 993AA2XMA7TL, Omron E2E2-X2Y1.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | E2E2-X2Y1-US |
| Manufacturer Alternate Number | E2E2X2Y1US |
| UPC | 4547648310222 |
| Size | M12 |
| Body Type | Threaded Cylindrical |
| Type | Long Body |
| Supply Voltage Range | 24VAC - 240VAC |
| Sensing Range | 2mm |
| Shielded | Yes |
| Electrical Connection | PVC Cable |
| Cable Length | 2m |
| Output Type | 2 Wire AC |
| Operation | Normally Open |
| Threaded Length | 55mm |
| Overall Length | 69mm |
| Mounting Type | Bracket with 12mm mounting hole or M12x1 threaded hole |
| IP Rating | IP67 |
| Height (mm) | 21mm (0.83") |
| Width (mm) | 21mm |
| Depth (Length) (mm) | 60mm |
| Weight (lbs) | 0.14 |
| UOM | ea |
