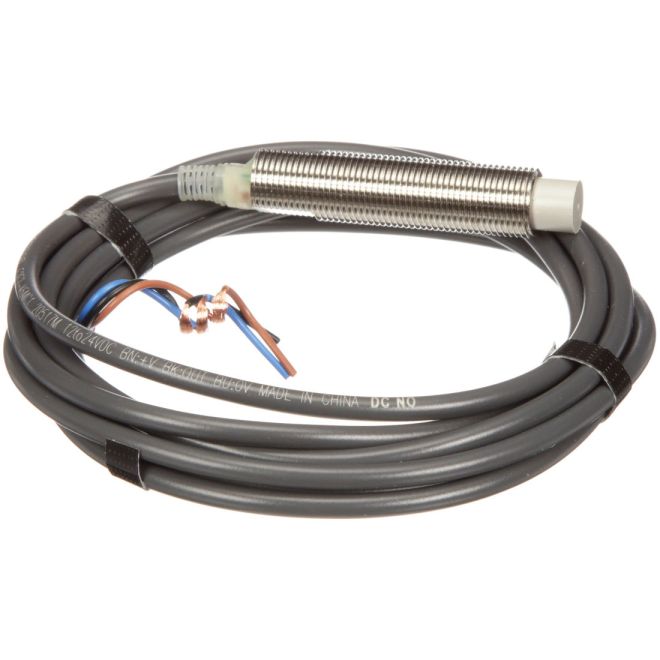

Omron E2E2-X5MC1 M12 Proximity Sensor
SKU#:
4396
Omron E2E long-barrel DC 3-wire proximity sensors built for rugged duty. Although E2E2-X5MC1 proximity sensor is water resistant, a cover to protect the proximity sensor from water or water-soluble machining oil is recommended so that its reliability and life expectancy can be maintained.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | E2E2-X5MC1 |
| Manufacturer Alternate Number | E2E2X5MC1 |
| UPC | 4547648309509 |
| Size | M12 |
| Body Type | Threaded Cylindrical |
| Type | Long Body |
| Supply Voltage Range | 12VDC - 24VDC |
| Sensing Range | 5mm |
| Shielded | No |
| Electrical Connection | PVC Cable |
| Cable Length | 2m |
| Output Type | NPN |
| Operation | Normally Open |
| Threaded Length | 48mm |
| Overall Length | 69mm |
| Mounting Type | Bracket with 12mm mounting hole or M12x1 threaded hole |
| IP Rating | IP67 |
| Height (mm) | 21mm (0.83") |
| Width (mm) | 21mm |
| Depth (Length) (mm) | 60mm |
| Weight (lbs) | 0.17 |
| UOM | ea |
