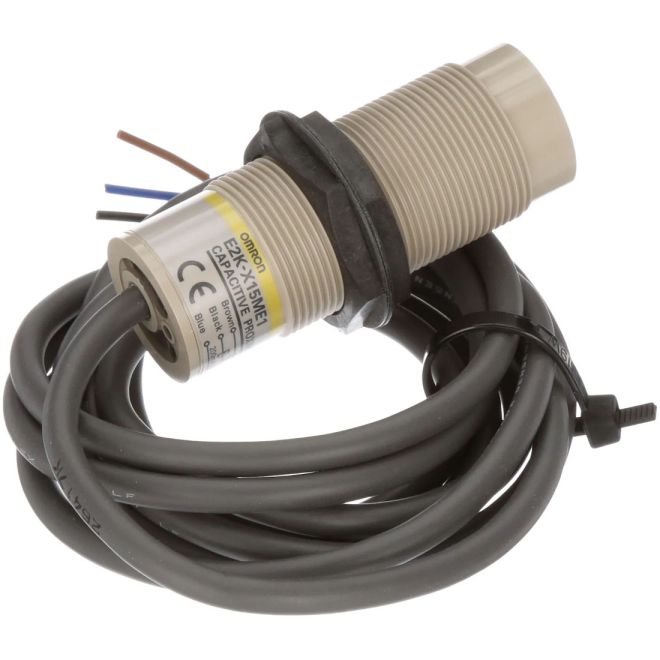

Omron E2K-X15ME1 M30 Proximity Sensor
SKU#:
4448
Omron E2K-X can detect almost any type of object. The sensing distance of the E2K-X15ME1, however, will vary with the electrical characteristics of the object, such as the conductance and inductance of the object, and the water content and capacity of the object. The maximum sensing distance of the E2K-X will be obtained if the object is made of grounded metal.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | E2K-X15ME1 |
| Manufacturer Alternate Number | E2KX15ME1 |
| UPC | 4536853264352 |
| Size | M30 |
| Body Type | Threaded Cylindrical |
| Supply Voltage Range | 12VDC - 24VDC |
| Sensing Range | 15mm |
| Shielded | No |
| Electrical Connection | PVC Cable |
| Cable Length | 2m |
| Output Type | NPN |
| Operation | Normally Open |
| Threaded Length | 50mm |
| Overall Length | 80mm |
| Mounting Type | Bracket with 30mm mounting hole or M30x1.5 threaded hole |
| IP Rating | IP66 |
| Height (mm) | 42mm |
| Width (mm) | 42mm |
| Depth (Length) (mm) | 80mm |
| Weight (lbs) | 0.45 |
| UOM | ea |
