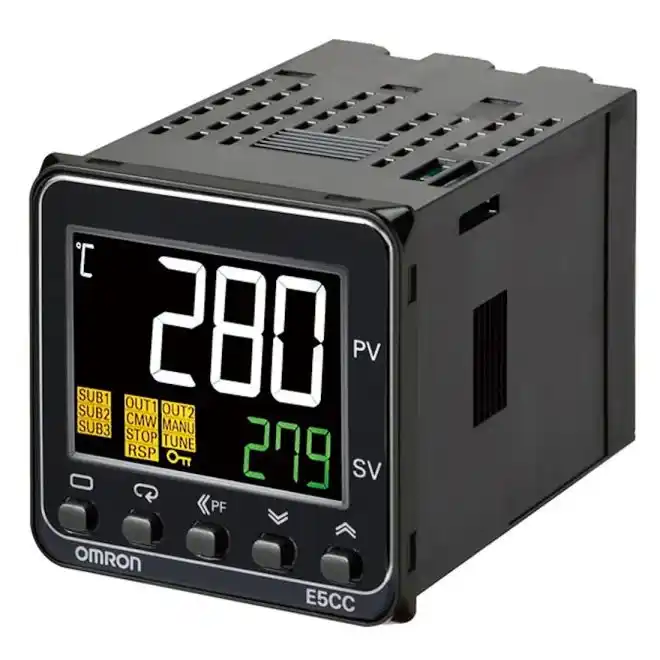

Omron E5CC-CX2AUM-000 Temperature Controller
SKU#:
500411
The E5CC series delivers accurate and responsive control usually found on advanced temperature controllers by using a fast 50 ms sampling time and Omron's 2-PID control algorithm. This powerful and patented algorithm provides enhanced control stability, which guarantees consistent product quality. For less demanding applications, the E5CC-CX2AUM-000 controllers also support ON/OFF control. To enhance visibility, large white characters (15.2 mm high for E5CC) are used to show present value (PV). Viewing angle range and contrast ratios have also been enhanced with the new LCD such that the display can be easily read from greater distances and in less favorable lighting conditions.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | E5CC-CX2AUM-000 |
| Manufacturer Alternate Number | E5CCCX2AUM000 |
| UPC | 4548583466739 |
| Control Method | ON/OFF-Control, PID Control |
| IP Rating | IP66 |
| Output Type | Linear Current Output |
| Terminal Type | Plug-in, 11 Pin (Octal) |
| Mounting Type | Panel |
| Supply Voltage Range | 100VAC - 240VAC |
| Height (mm) | 48mm |
| Width (mm) | 48mm |
| Depth (Length) (mm) | 77mm |
| Weight (lbs) | 0.26 |
| UOM | ea |
