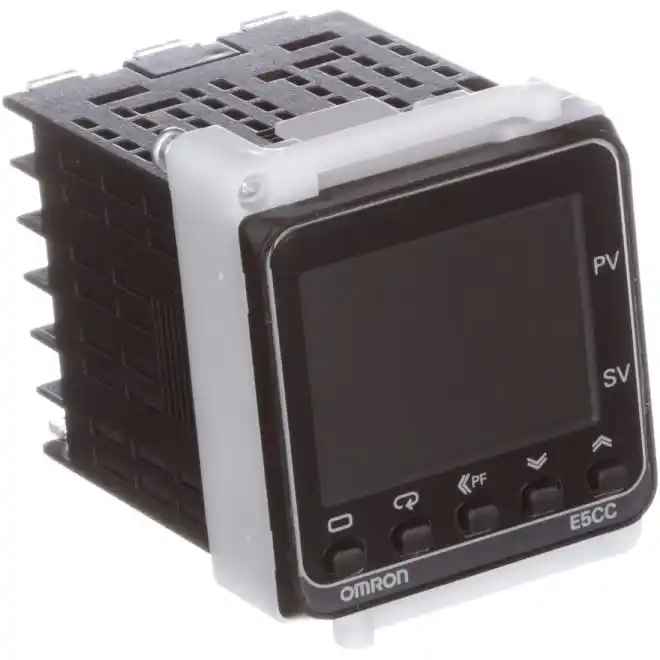

Omron E5CC-QX3A5M-001 Temperature Controller
SKU#:
566618
The E5CC series delivers accurate and responsive control usually found on advanced temperature controllers by using a fast 50 ms sampling time and Omron's 2-PID control algorithm. This powerful and patented algorithm provides enhanced control stability, which guarantees consistent product quality. For less demanding applications, the E5CC-QX3A5M-001 controllers also support ON/OFF control. To enhance visibility, large white characters (15.2 mm high for E5CC) are used to show present value (PV). Viewing angle range and contrast ratios have also been enhanced with the new LCD such that the display can be easily read from greater distances and in less favorable lighting conditions.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | E5CC-QX3A5M-001 |
| Manufacturer Alternate Number | E5CCQX3A5M001 |
| UPC | 4548583087989 |
| Alarms | 3 Relays |
| Control Function | Heat & Cool |
| Control Method | ON/OFF-Control, 2-PID Control with Auto-Tuning |
| Display | Dual Line |
| IP Rating | IP66 |
| Input Sampling Period | 50ms |
| Input Type | Thermocouple, RTD, Linear |
| Output Type | 3 Alarm, Alarm Output Relay |
| Ramp/Soak Cycle | 1 Simple Pattern |
| Terminal Type | Screw Terminal |
| Mounting Type | Panel |
| Size | 1/16 DIN (48x48 mm) |
| Main Control Output | Voltage (Pulse) |
| Supply Voltage Range | 100VAC - 240VAC |
| Temperature Range | > 700°C |
| Height (mm) | 48mm |
| Width (mm) | 48mm |
| Depth (Length) (mm) | 77mm |
| Weight (lbs) | 0.26 |
| UOM | ea |
