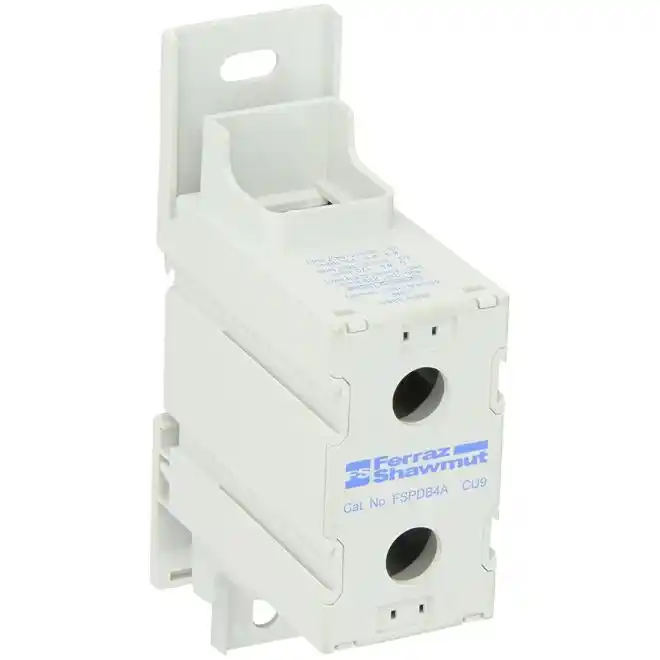

Mersen FSPDB4A Ferraz Power Distribution Block
SKU#:
343526
Mersen finger safe power distribution blocks introduce a new level of safety and ease for installing power distribution blocks. An IP20 level of finger-safe protection is achieved using FSPDBs, eliminating the need for special covers or custom plexiglass sheets to protect your panels. FSPDB4A finger-safe power distribution blocks (sizes 1 to 4) simply snap onto 35mm DIN rail to provide the quickest installation. Modular design also allows for multi pole applications by use of assembly pins. FSPDBs provide a safe, convenient way of splicing cables, splitting primary power into a variety of secondary circuits or providing a fixed junction tap-off point. Ferraz Shawmut FSPDB4A is comparable to Bussmann Edison EPDB301, Weidmuller WPDB 185 1-1 AL.
| Brand | Mersen / Ferraz Shawmut / Gould |
|---|---|
| Manufacturer Part Number | FSPDB4A |
| Manufacturer Alternate Number | X232803 |
| UPC | 782001319649 |
| Rated Voltage AC | 600VAC |
| Rated Voltage DC | 1500VDC |
| Rated Current | 335A |
| RoHS Compliant | Yes |
| Short Circuit Rating (Standalone) | 10kA |
| Short Circuit Rating (Class CC) | 30kA |
| Short Circuit Rating (Class G) | 60kA |
| Short Circuit Rating (Class J) | 400kA |
| Short Circuit Rating (Class L) | 0kA |
| Short Circuit Rating (Class RK1) | 200kA |
| Short Circuit Rating (Class RK5) | 100kA |
| Short Circuit Rating (Class T) | 400kA |
| Number of Poles | 1 |
| Body/Insulating Material | Nylon |
| Connection/Terminal Material | Tin-Plated Aluminum |
| Terminal Type | Box |
| Number of Openings per Pole (Primary) | 1 |
| Number of Openings per Pole (Secondary) | 1 |
| Connector Type (Primary) | Box |
| Connector Type (Secondary) | Box |
| Height (mm) | 80mm (3.15") |
| Width (mm) | 40mm |
| Depth (Length) (mm) | 146mm |
| Weight (lbs) | 1.00 |
| UOM | ea |
