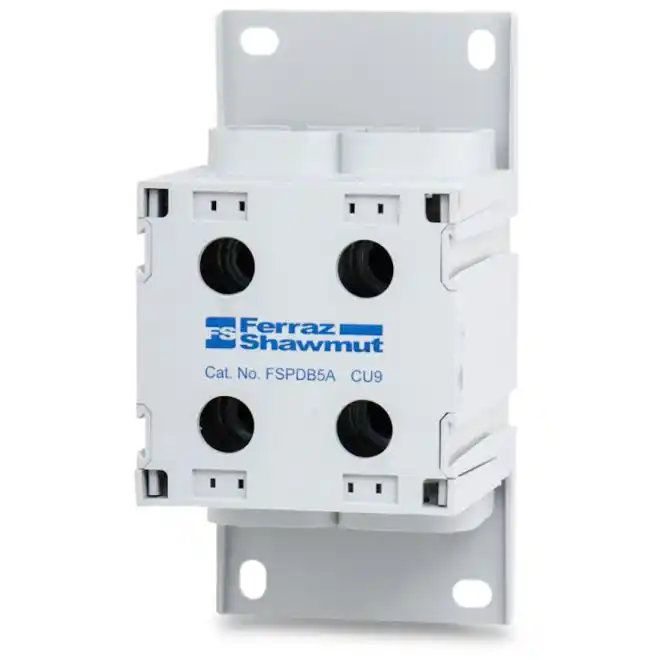

Mersen FSPDB5A Ferraz Power Distribution Block

SKU#:

343529

Mersen finger safe power distribution blocks introduce a new level of safety and ease for installing power distribution blocks. An IP20 level of finger-safe protection is achieved using FSPDBs, eliminating the need for special covers or custom plexiglass sheets to protect your panels. Finger-safe power distribution blocks (sizes 1 to 4) simply snap onto 35mm DIN rail to provide the quickest installation. Modular design also allows for multi pole applications by use of assembly pins. FSPDB5A FSPDBs provide a safe, convenient way of splicing cables, splitting primary power into a variety of secondary circuits or providing a fixed junction tap-off point. Ferraz Shawmut FSPDB5A is comparable to Bussmann Edison EPDB702, Weidmuller WPDB 300 2-2 AL.
Specifications
Brand Mersen / Ferraz Shawmut / Gould
Manufacturer Part Number FSPDB5A
Manufacturer Alternate Number Y232804
UPC 782001319663
Rated Voltage AC 600VAC
Rated Voltage DC 1500VDC
Rated Current 840A
RoHS Compliant Yes
Short Circuit Rating (Standalone) 10kA
Short Circuit Rating (Class CC) 30kA
Short Circuit Rating (Class G) 60kA
Short Circuit Rating (Class J) 600kA
Short Circuit Rating (Class L) 0kA
Short Circuit Rating (Class RK1) 600kA
Short Circuit Rating (Class RK5) 400kA
Short Circuit Rating (Class T) 600kA
Number of Poles 1
Body/Insulating Material Nylon
Connection/Terminal Material Tin-Plated Aluminum
Terminal Type Box
Number of Openings per Pole (Primary) 2
Number of Openings per Pole (Secondary) 2
Connector Type (Primary) Box
Connector Type (Secondary) Box
Height (mm) 80mm (3.15")
Width (mm) 72mm
Depth (Length) (mm) 146mm
Weight (lbs) 2.70
UOM ea
