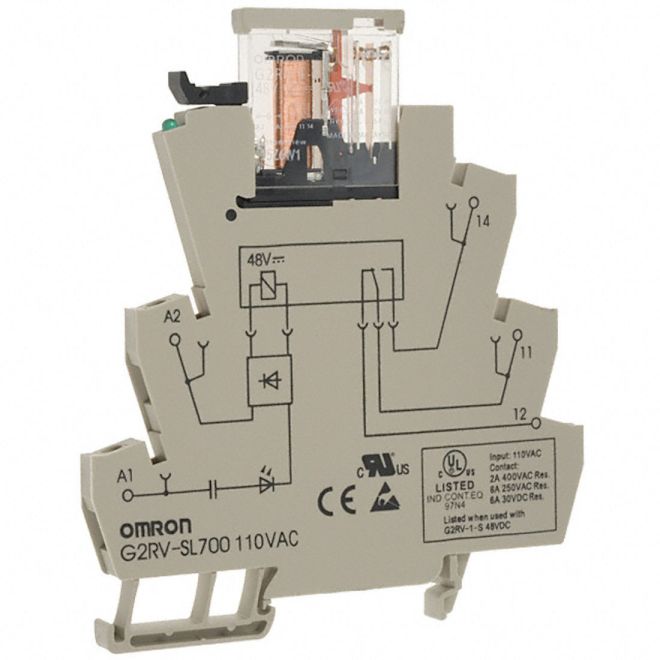

Omron G2RV-SL700 AC110 Slim Relay and Socket
SKU#:
403540
Omron G2RV relay perfectly meets the needs of manufacturers like panel and machine builders looking to cut costs by reducing panel size. G2RV-SL700 AC110 slim width allows modules to be downsized and the number of I/O lines to be increased while continuing to utilize a standard platform for a range of control loads, from a powerful 6A to an accurate 10 mA signal. Relay and socket are sold as a combination, with relays available separately for maintenance purposes. The only truly industrial 6 mm relay on the market. Offering significant space and time savings without compromising on reliability. Omron G2RV-SL700 AC110 is comparable to Omron G2RV-SR700 AC110.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | G2RV-SL700 AC110 |
| Manufacturer Alternate Number | G2RVSL700AC110 |
| UPC | 4547648262408 |
| Coil Voltage | 120VAC |
| Contact Arrangement | 1 Form C (SPDT-N/O, N/C) |
| Terminal Type | Screw Terminal |
| Mounting Type | Base/Socket |
| Indicator | LED |
| Max. Switching Voltage | 400 VAC, 125 VDC |
| Max. Switching Current | 6 A |
| Rated Current | 2 A at 250 VAC, 3 A at 30 VDC |
| Rated Load (Resistive) | 6 A at 250 VAC, 6 A at 30 VDC |
| Max. Switching Power(Resistive) | 1,500 VA, 180 W |
| Max. Switching Power (Inductive) | 500 VA, 60 W |
| Minimum Load | 10 mA at 5 VDC |
| Operating Temperature | -40°C - +55°C |
| Power Consumption | 0.8 VA |
| RoHS Compliant | Yes |
| Duty Cycles | 50,000 |
| Height (mm) | 99.3mm (3.909") |
| Width (mm) | 92.7mm |
| Depth (Length) (mm) | 6.2mm |
| Weight (lbs) | 0.08 |
| UOM | ea |
