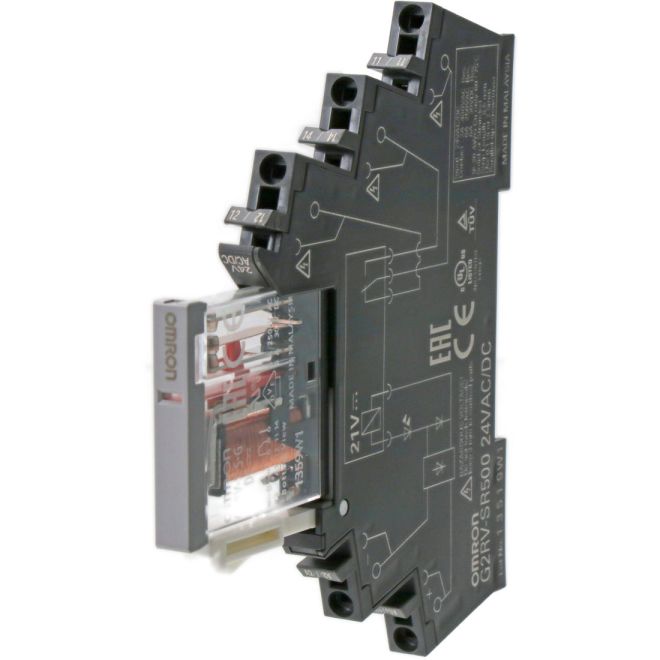

Omron G2RV-SR500 AC/DC24 Slim I/O Relay
SKU#:
577132
Omron G2RV relay perfectly meets the needs of manufacturers like panel and machine builders looking to cut costs by reducing panel size. G2RV-SR500 AC/DC24 slim width allows modules to be downsized and the number of I/O lines to be increased while continuing to utilize a standard platform for a range of control loads, from a powerful 6A to an accurate 10 mA signal. Relay and socket are sold as a combination, with relays available separately for maintenance purposes. Omron G2RV-SR500 AC/DC24 is comparable to Allen Bradley 700-HLT2U24, Finder 38.61.0.024.5060, IDEC RV8H-S-AD24, Phoenix Contact PLC-RPIT-24UC/21, Schneider Magnecraft RSL1PRBU, Weidmuller TRZ 24VUC 1CO.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | G2RV-SR500 AC/DC24 |
| Manufacturer Alternate Number | G2RVSR500ACDC24 |
| UPC | 4549734135917 |
| Coil Voltage | 24VAC, 24VDC |
| Contact Arrangement | 1 Form C (SPDT-N/O, N/C) |
| Terminal Type | Plug-in |
| Mounting Type | Base/Socket |
| Indicator | Mechanical |
| Max. Switching Voltage | 400 VAC, 125 VDC |
| Max. Switching Current | 6 A |
| Rated Current | 2.5 A at 250 VAC, 2 A at 30 VDC |
| Rated Load (Resistive) | 6 A at 250 VAC, 6 A at 30 VDC |
| Max. Switching Power(Resistive) | 1,500 VA, 180 W |
| Max. Switching Power (Inductive) | 500 VA, 60 W |
| Minimum Load | 10 mA at 5 VDC |
| Operating Temperature | -40°C - +55°C |
| Power Consumption | Approx. 0.5 VA |
| RoHS Compliant | Yes |
| Duty Cycles | 50,000 |
| Height (mm) | 77.9mm |
| Width (mm) | 90mm |
| Depth (Length) (mm) | 6.2mm |
| Weight (lbs) | 0.07 |
| UOM | ea |
