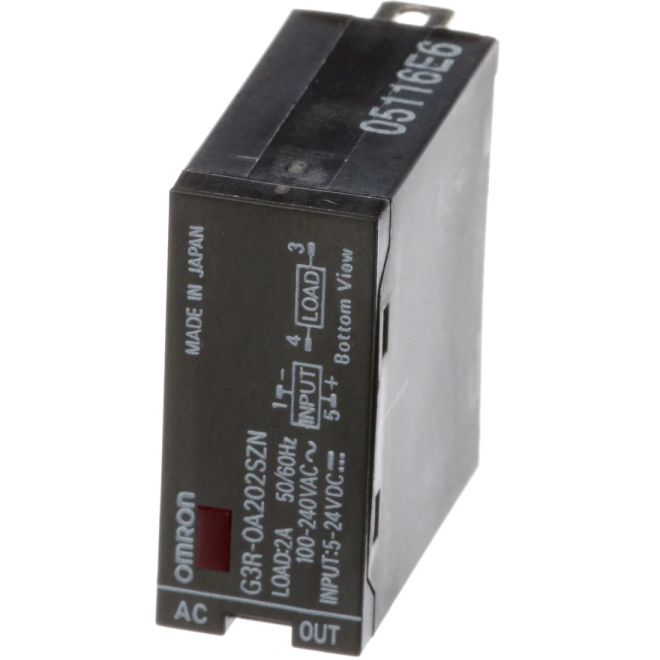

Omron G3R-OA202SZN DC5-24 I/O 5VDC-24VDC 2A SSR
SKU#:
334363
Omron G3R high-speed models with optimum input ratings for a variety of sensors are available, as well as input and output modules that can be used instead of the G2RS. Use a coupler conforming to VDE 0884 and assuring an I/O dielectric strength of 4,000V. Since G3R-OA202SZN DC5-24 SSR does not incorporate an overvoltage absorption component, be sure to connect an overvoltage absorption component when using the SSR under an inductive load. Omron G3R-OA202SZN DC5-24 is comparable to Automation Direct AD-70S2-04B.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | G3R-OA202SZN DC5-24 |
| Manufacturer Alternate Number | G3ROA202SZNDC524 |
| UPC | 4547648740548 |
| Supply Voltage Range | 5VDC - 24VDC |
| Rated Current | 2 A |
| Max Operating Input Voltage | 4VDC - 32VDC |
| Indicator | LED |
| Input Impedance Range | 0.9kΩ ±20% - 6.5kΩ ±20% |
| Max Rated Load Voltage | 0.05A - 2A at 75VAC - 264VAC |
| RoHS Compliant | Yes |
| Operating Temperature | -30°C - +80°C |
| Mounting Type | PCB |
| Terminal Type | Solder Pin |
| Zero Cross Function | Yes |
| Height (mm) | 28mm (1.1") |
| Width (mm) | 29mm |
| Depth (Length) (mm) | 13mm |
| Weight (lbs) | 0.04 |
| UOM | ea |
