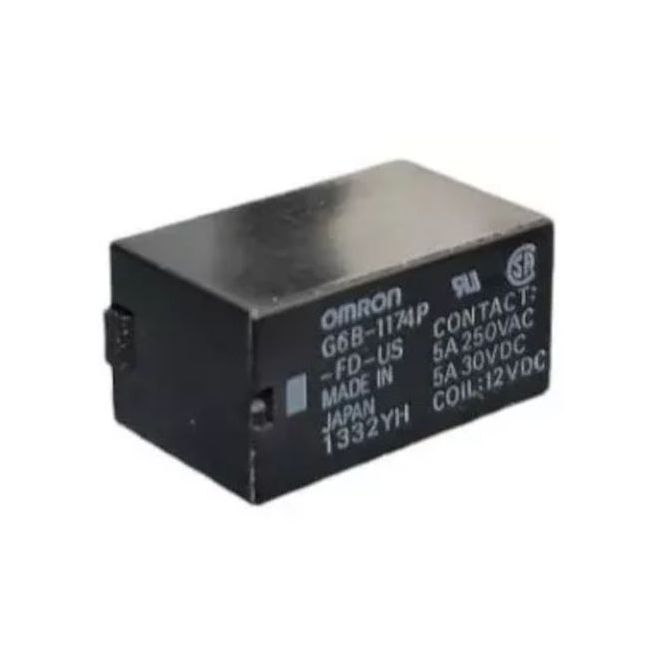

Omron G6B-1174P-FD-US-DC12 PCB Power Relay

SKU#:

335266

Omron G6B model for connecting sockets are available. AgSnIn contacts suitable for loads that generate surge voltage (inductive load, capacity load, etc.) are available with G6B-1174P-FD-US-DC12. Standard model conforms to UL/CSA standards. Operation indicator and built-in surge absorption diode models are available.
Specifications
Brand Omron Automation
Manufacturer Part Number G6B-1174P-FD-US DC12
Manufacturer Alternate Number G6B1174PFDUSDC12
UPC 4536853462062
Coil Voltage 12VDC
Contact Arrangement 1 Form A (SPST-N/O)
Terminal Type Solder Pin
Max. Switching Voltage 380 VAC, 125 VDC
Max. Switching Current 8 A
Rated Current 2 A at 250 VAC, 2 A at 30 VDC
Rated Load (Resistive) 5 A at 250 VAC, 5 A at 30 VDC
Operating Temperature -25°C - +70°C
Power Consumption Approx. 200 mW
RoHS Compliant Yes
Duty Cycles 100,000
Height (mm) 13.5mm
Width (mm) 21mm
Depth (Length) (mm) 10mm
Weight (lbs) 0.01
UOM ea
