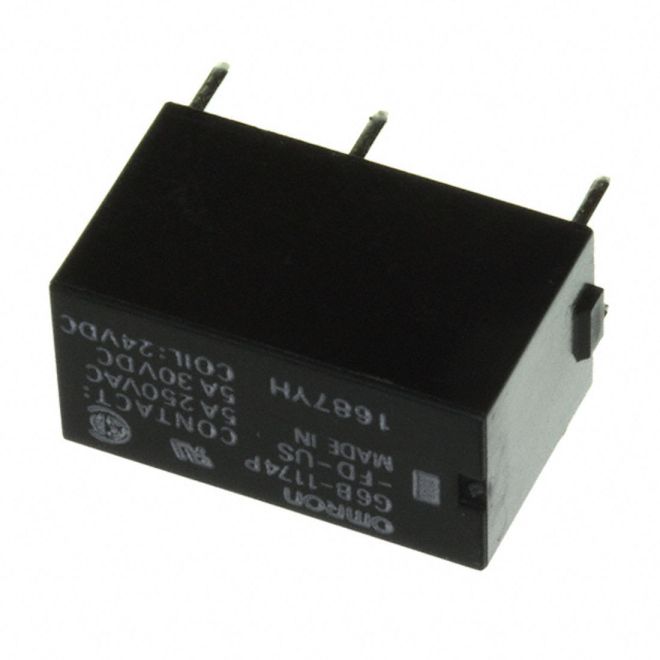

Omron G6B-1174P-FD-US DC24 PCB Power Relay
SKU#:
5914
Omron G6B model for connecting sockets are available. AgSnIn contacts suitable for loads that generate surge voltage (inductive load, capacity load, etc.) are available with G6B-1174P-FD-US-DC24. Standard model conforms to UL/CSA standards. Operation indicator and built-in surge absorption diode models are available.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | G6B-1174P-FD-US DC24 |
| Manufacturer Alternate Number | G6B1174PFDUSDC24 |
| UPC | 4536853462079 |
| Coil Voltage | 24VDC |
| Contact Arrangement | 1 Form A (SPST-N/O) |
| Terminal Type | Solder Pin |
| Max. Switching Voltage | 380 VAC, 125 VDC |
| Max. Switching Current | 8 A |
| Rated Current | 2 A at 250 VAC, 2 A at 30 VDC |
| Rated Load (Resistive) | 5 A at 250 VAC, 5 A at 30 VDC |
| Operating Temperature | -25°C - +70°C |
| Power Consumption | Approx. 200 mW |
| RoHS Compliant | Yes |
| Duty Cycles | 100,000 |
| Height (mm) | 13.5mm |
| Width (mm) | 21mm |
| Depth (Length) (mm) | 10mm |
| Weight (lbs) | 0.01 |
| UOM | ea |
