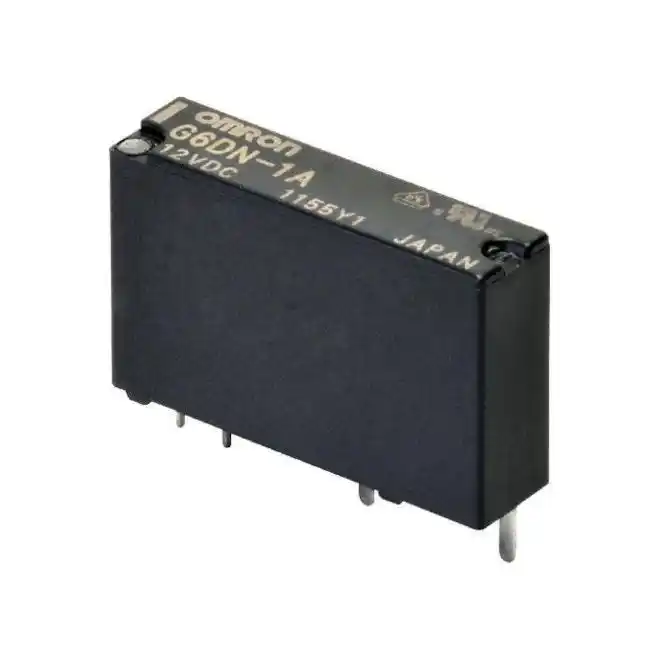

Omron G6DN-1A-L DC12 High Durability Power Relays
SKU#:
606249
Omron G6DN PCB power relays feature Slim 5-mm width and miniature size. (20 × 5.08 × 12.5 mm). High switching capability 5 A (250 VAC and 30 VDC), and high contact reliability by crossbar-twin contact. Low power consumption 110 mW. Meets application standards EN61010-1 and EN61010-2-201 for reinforced insulation (CTI 600 V min. and Rated insulation voltage 300 V). Actualize electrical durability 100 Kops (-L type).
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | G6DN-1A-L DC12 |
| Manufacturer Alternate Number | G6DN1ALDC12 |
| Coil Voltage | 12VDC |
| Contact Arrangement | 1 Form A (SPST-N/O) |
| Terminal Type | PCB |
| Max. Switching Voltage | 277 VAC, 125 VDC |
| Max. Switching Current | 5 A |
| Rated Current | 2 A at 250 VAC, 2 A at 30 VDC |
| Rated Load (Resistive) | 5 A at 250 VAC, 5 A at 30 VDC |
| Duty Cycles | 100,000 |
| Height (mm) | 12.5mm |
| Width (mm) | 5.1mm |
| Depth (Length) (mm) | 20mm |
| Weight (lbs) | 0.01 |
| UOM | ea |
