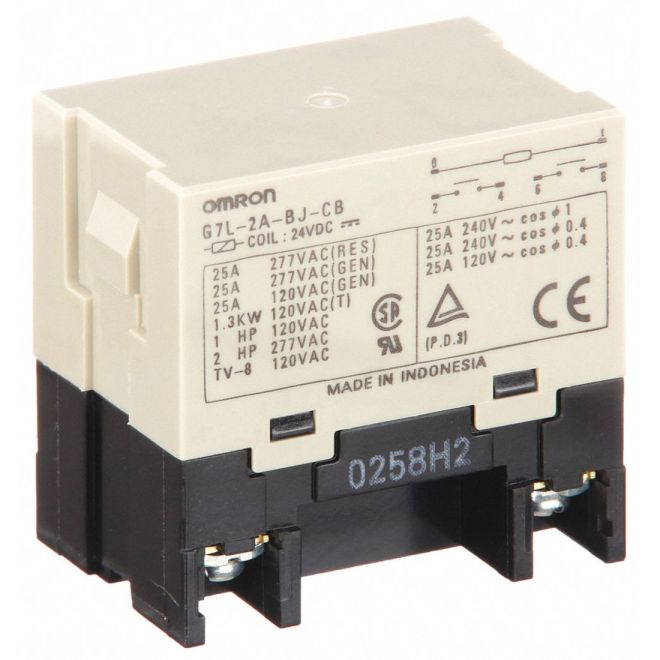

Omron G7L-2A-BJ-CB DC24 General Purpose Relay
SKU#:
1979
Omron G7L power relay is ideally suited for high inrush fluid pump control. A high-capacity, high-dielectric-strength relay compatible with momentary voltage drops. G7L-2A-BJ-CB DC24 is equipped with a double-break mechanism and a test button (excluding -P models).
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | G7L-2A-BJ-CB DC24 |
| Manufacturer Alternate Number | G7L2ABJCBDC24 |
| UPC | 4547648189606 |
| Coil Voltage | 24VDC |
| Contact Arrangement | 2 Form A (DPST-N/O) |
| Terminal Type | Screw Terminal |
| Mounting Type | Chassis |
| Test Button | Yes |
| Max. Switching Voltage | 250 VAC |
| Max. Switching Current | 25 A |
| Rated Current | 25A at 220 VAC |
| Rated Load (Resistive) | 25 A at 220 VAC |
| Max. Switching Power(Resistive) | 5,500 VA |
| Max. Switching Power (Inductive) | 5,500 VA |
| Minimum Load | 100 mA at 5 VDC |
| Operating Temperature | -25°C - +60°C |
| Power Consumption | Approx.1.90 W |
| RoHS Compliant | Yes |
| Duty Cycles | 1,000,000 |
| Height (mm) | 55mm |
| Width (mm) | 52.5mm |
| Depth (Length) (mm) | 34.5mm |
| Weight (lbs) | 0.26 |
| UOM | ea |
