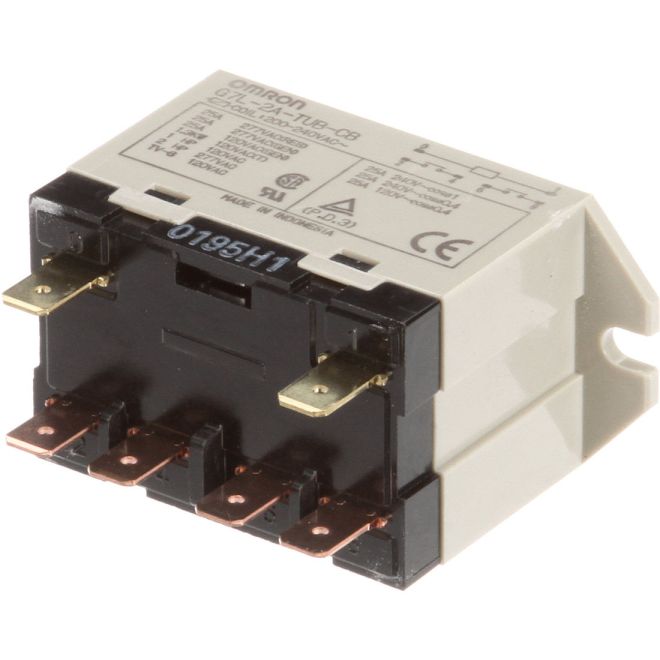

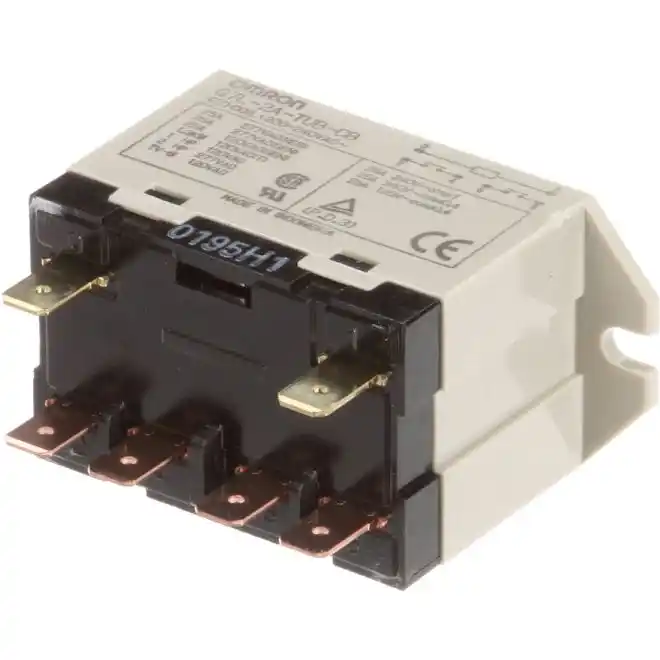

Omron G7L-2A-TUB-CB-AC200/240 25A Relay
SKU#:
2033
Omron G7L power relay is ideally suited for high inrush fluid pump control. A high-capacity, high-dielectric-strength relay compatible with momentary voltage drops. G7L-2A-TUB-CB-AC200/240 is equipped with a double-break mechanism and a test button (excluding -P models).
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | G7L-2A-TUB-CB AC200/240 |
| Manufacturer Alternate Number | G7L2ATUBCBAC200240 |
| UPC | 4536853481339 |
| Coil Voltage | 200VAC - 240VAC |
| Contact Arrangement | 2 Form A (DPST-N/O) |
| Terminal Type | Quick Connect |
| Mounting Type | Chassis |
| Max. Switching Voltage | 250 VAC |
| Max. Switching Current | 25 A |
| Rated Current | 25A at 220 VAC |
| Rated Load (Resistive) | 25 A at 220 VAC |
| Max. Switching Power(Resistive) | 5,500 VA |
| Max. Switching Power (Inductive) | 5,500 VA |
| Minimum Load | 100 mA at 5 VDC |
| Operating Temperature | -25°C - +60°C |
| Power Consumption | Approx.1.70 VA to 2.50 VA |
| RoHS Compliant | Yes |
| Duty Cycles | 1,000,000 |
| Height (mm) | 47mm |
| Width (mm) | 68.5mm |
| Depth (Length) (mm) | 33.5mm |
| Weight (lbs) | 0.20 |
| UOM | ea |
