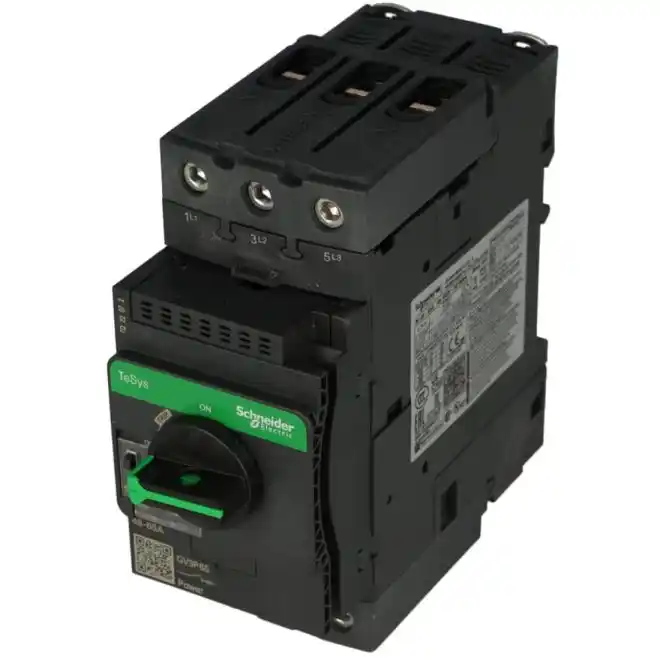

Square D GV3P65 TeSys GV3 Manual Starter 48A-65A
SKU#:
407598
Simplify design, panel space and installation with Square D TeSys™ high SCCR solution that use only two components that make up an entire branch circuit up to 520 amps. These two-component solutions are UL compliant using either a Telemecanique Type F combination motor controller rating or a UL 489 rating. Schneider Electric GV3P-65 TeSys Deca GV3 manual starter and protector thermal magnetic circuit breaker rotary knob 48A to 65A EverLink BTR screw connectors.
| Brand | Schneider Electric / Telemecanique / Square D |
|---|---|
| Manufacturer Part Number | GV3P65 |
| Manufacturer Alternate Number | GV3P 65 |
| UPC | 785901617679 |
| Rated Voltage | 690VAC |
| Rated Current | 65A |
| Electrical Connection | EverLink BTR Screw Connectors |
| IP Rating | IP20 |
| Operating Temperature | -20°C - +60°C |
| Number of Poles | 3 |
| Type | Circuit Breaker |
| Duty Cycles | 50,000 |
| Mounting Type | DIN Rail |
| Height (mm) | 132mm |
| Width (mm) | 55mm |
| Depth (Length) (mm) | 136mm |
| Weight (lbs) | 2.12 |
| UOM | ea |
