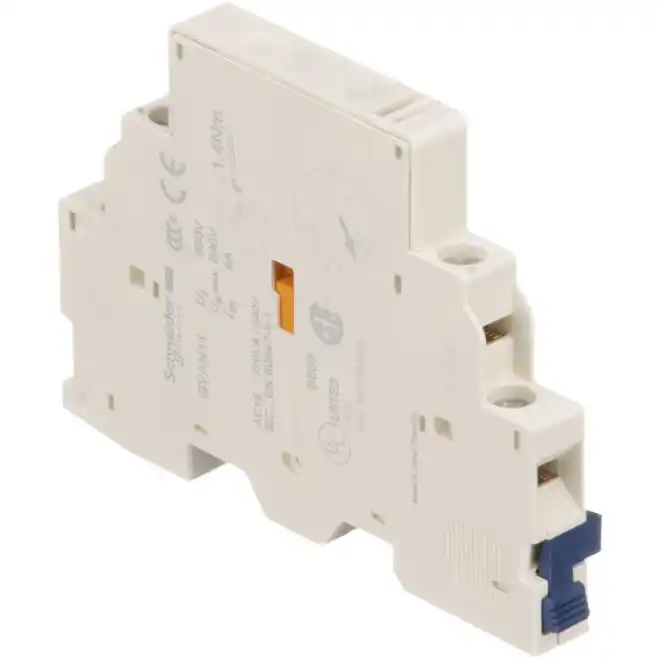

Square D GVAN11 GV2, GV3 Auxiliary Contact Block
SKU#:
206956
Schneider Electric auxiliary contact blocks give an indication of the contactor status. Telemecanique auxiliary contact blocks can be used for remote visual signaling, alarming, electrical locking, relay activation, and others. Schneider Electric GVAN11 manual starter and protector auxiliary contact block 1 normally open (NO) and 1 normally close (NC) left side mount screw clamp terminals for GV2ME, GV2RT, GV2L, GV3P, GV3L, GV2LE, GV2P. Square D GV AN11 is comparable to Telemecanique GV2-AN11.
| Brand | Schneider Electric / Telemecanique / Square D |
|---|---|
| Manufacturer Part Number | GVAN11 |
| Manufacturer Alternate Number | GV AN11 |
| UPC | 785901212430 |
| Rated Voltage | 48VAC-690VAC, 24VDC-240VDC |
| Rated Current | 6A |
| Electrical Connection | Screw Terminals |
| Type | Auxiliary Contact Block |
| Duty Cycles | 100,000 |
| Mounting Type | Side |
| Height (mm) | 89mm |
| Width (mm) | 9.3mm |
| Depth (Length) (mm) | 66mm |
| Weight (lbs) | 0.11 |
| UOM | ea |
