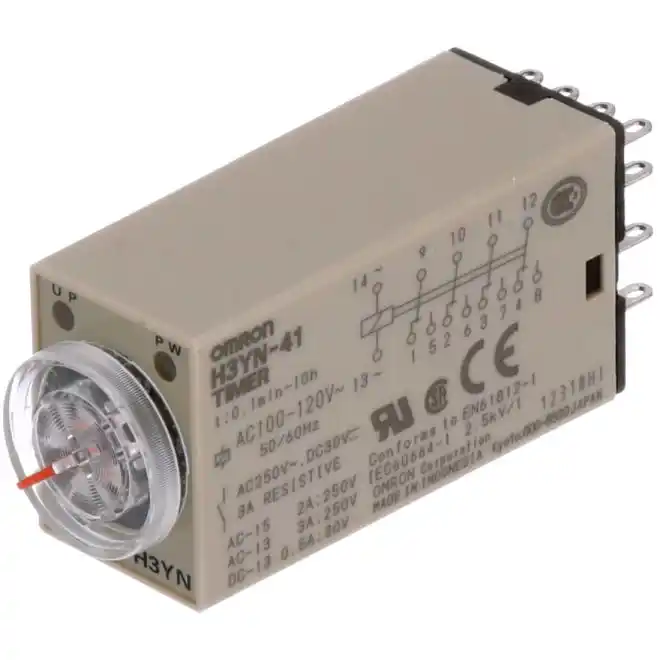

Omron H3YN-41 AC100-120 4PDT Solid-State Timer
SKU#:
3550
Omron H3YN is a miniature timer with multiple time ranges and multiple operating modes. Minimizes stock. Pin configuration compatible with MY power relay. User selectable operating modes include ON-delay, Interval, Flicker ON-start and Flicker OFF-start. Multiple time ranges between 0.1 s to 10 min and 0.1 min to 10 h depending on model. H3YN-41 AC100-120 conforms to EN 61812-1 and IEC 60664-1 for Low Voltage, and EMC Directives. Omron H3YN-41 AC100-120 is comparable to IDEC GT5Y-4SN3A100.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | H3YN-41 AC100-120 |
| Manufacturer Alternate Number | H3YN41AC100120 |
| UPC | 4548583755543 |
| Supply Voltage Range | 100VAC - 120VAC |
| Contact Arrangement | 4PDT (4 Form C) |
| Display | LED Indicators |
| Time Ranges | 0.1Min - 10Hrs |
| Setting Method | Analog Dial & Dip Switches |
| Resetting Method | Self Reset |
| Number of Operating Modes | 4 |
| ON-Delay Mode | Yes |
| Repeat Cycle OFF Start Mode | Yes |
| Repeat Cycle ON Start Mode | Yes |
| Signal ON/OFF Delay Mode | No |
| Signal OFF Delay Mode | No |
| Interval Mode | Yes |
| One-Shot Output Mode | No |
| Power OFF Delay | No |
| Power ON Delay | No |
| ON/OFF Adjustable Duty Cycle | No |
| On-Delay with Instantaneous Output | No |
| Twin Timer | No |
| Stopwatch | No |
| Cumulative | No |
| Star-Delta | No |
| Output Type | 4PDT |
| Terminal Type | 14 Pin Socket |
| Input Type | No Inputs |
| Mounting Type | Base/Socket |
| Electrical Connection | 14 Pin Socket |
| Height (mm) | 28mm (1.1") |
| Width (mm) | 21.5mm |
| Depth (Length) (mm) | 56.6mm |
| Weight (lbs) | 0.11 |
| UOM | ea |
