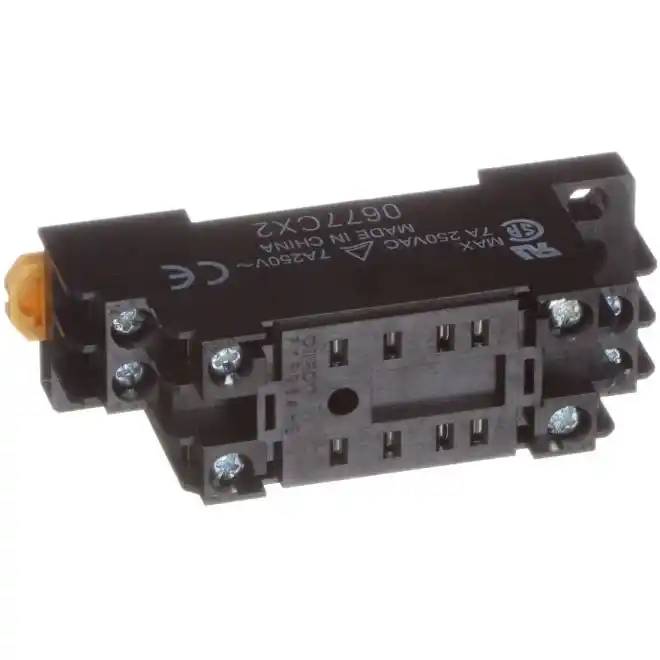

Omron PYF08A-E Front-Mounting Socket
SKU#:
2979
Omron's MY series relay has been the industry leader for over 15 years. Along with its world wide recognition, diverse contact configuration (DPDT 4PDT) and many different coil voltages (10 different AC and DC), MY series also includes standard options such as: push to test button, mechanical indicator, LED indicator, write-on nameplate and many accessories like PYF08A-E.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | PYF08A-E |
| Manufacturer Alternate Number | PYF08AE |
| UPC | 4547648009195 |
| Contact Arrangement | 2 Form C (DPDT) |
| Number of Positions | 8 |
| Electrical Connection | 8 Positions Blade |
| Terminal Type | Screw Terminal |
| Operating Temperature | -40°C - +70°C |
| Rated Current | 10A |
| Supply Voltage Range | 250VAC |
| Mounting Type | DIN Rail |
| Height (mm) | 31mm (1.22") |
| Width (mm) | 78mm |
| Depth (Length) (mm) | 23mm |
| Weight (lbs) | 0.11 |
| UOM | ea |
