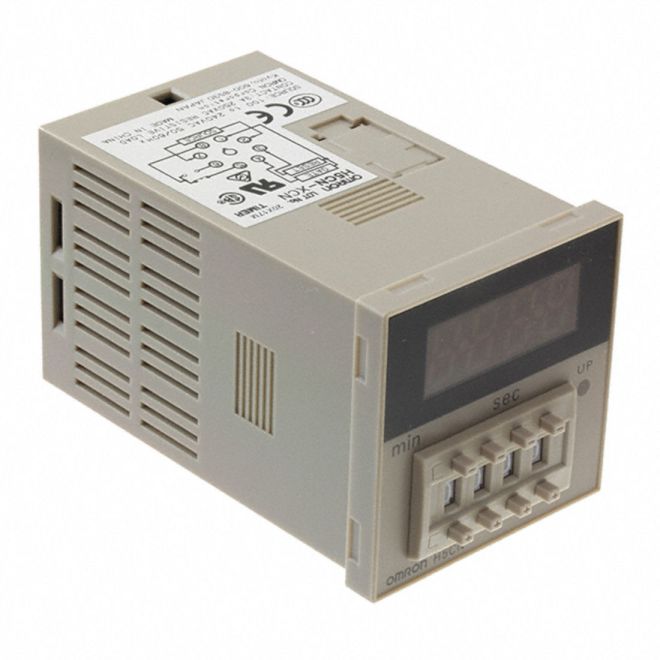

Omron H5CN-XCN DC12-48 ON Delay Digital Timer
SKU#:
125738
Omron H5CN is a miniature DIN-sized (48 x 48 mm) Quartz timer with abundant series versions. Series version cover a wide range of rated times; 9.999 s, 99.99 s, 999.9 s, 99 min 59 s, and 99 hrs 59 min. Selection of elapsed time indication, remaining time indication, contact output, and transistor output types to suit requirements. Power supply freely selectable within a range of 100VAC to 240VAC, as well as 12VDC to 48VDC. A backup battery (Y92S-20) for memory backup is not required for the new H5CN-XCN DC12-48 models.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | H5CN-XCN DC12-48 |
| Manufacturer Alternate Number | H5CNXCNDC1248 |
| UPC | 4547648259323 |
| Supply Voltage Range | 12VDC - 48VDC |
| Contact Arrangement | SPDT (1 Form C) |
| Display | 4 Digit LED Display |
| Time Ranges | 1Sec - 99Min 59Sec |
| Terminal Type | Plug In 8 Pin (Octal) |
| Input Type | Voltage Input |
| Mounting Type | Base/Socket |
| Electrical Connection | 8-Pin Socket |
| Height (mm) | 48mm |
| Width (mm) | 48mm |
| Depth (Length) (mm) | 97mm |
| Weight (lbs) | 0.24 |
| UOM | ea |
