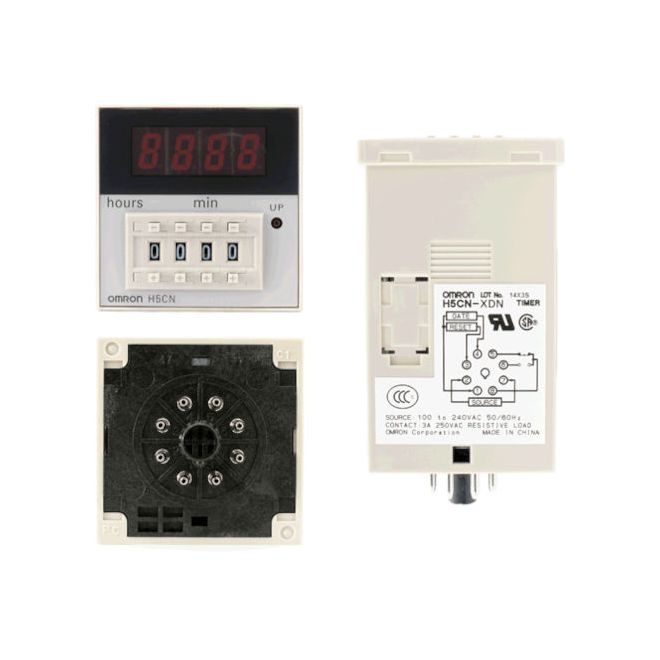

Omron H5CN-XDN AC100-240 ON Delay Digital Timer
SKU#:
141158
Omron H5CN is a miniature DIN-sized (48 x 48 mm) Quartz timer with abundant series versions. Series version cover a wide range of rated times; 9.999 s, 99.99 s, 999.9 s, 99 min 59 s, and 99 hrs 59 min. Selection of elapsed time indication, remaining time indication, contact output, and transistor output types to suit requirements. Power supply freely selectable within a range of 100VAC to 240VAC, as well as 12VDC to 48VDC. A backup battery (Y92S-20) for memory backup is not required for the new H5CN-XDN AC100-240 models.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | H5CN-XDN AC100-240 |
| Manufacturer Alternate Number | H5CNXDNAC100240 |
| UPC | 4547648259293 |
| Supply Voltage Range | 100VAC - 240VAC |
| Contact Arrangement | SPDT (1 Form C) |
| Display | 4 Digit LED Display |
| Time Ranges | 1Min - 99Hrs 59Min |
| Terminal Type | Plug In 8 Pin (Octal) |
| Input Type | Voltage Input |
| Mounting Type | Base/Socket |
| Electrical Connection | 8-Pin Socket |
| Height (mm) | 48mm |
| Width (mm) | 48mm |
| Depth (Length) (mm) | 97mm |
| Weight (lbs) | 0.24 |
| UOM | ea |
