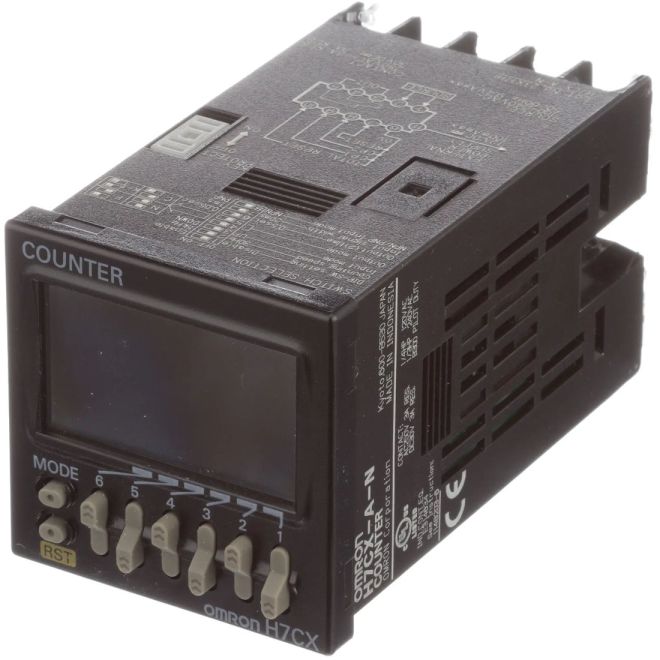

Omron H7CX-A-N AC100-240 Counters/Tachometers
SKU#:
407146
Omron H7CX series offers the ultimate in versatility and intuitive programming. With a display choice of up to six digits the H7CX offers many added-value features, making it ideal for multiple uses. In counter mode of H7CX-A-N AC100-240 you can set pre-scaled values from 0.001 to 9.999 (in the 4-digit model) or 0.001 to 99.999 (in the 6-digit model), which enables you to operate directly in values of litres, kg, metres etc.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | H7CX-A-N AC100-240 |
| Manufacturer Alternate Number | H7CXANAC100240 |
| UPC | 4548583745360 |
| Color | Black |
| Cutout Size | 1/16 DIN 48x48mm |
| Preset Counter | Yes |
| Totalizer | Yes |
| Counting Method | Up/Down Reversible, Command Input, Individual input, Quadrature Input |
| Display Digits | 6 |
| Maximum Counting Speeds | 5kHz |
| Range | -99999 to 999999 |
| Output Type | SPDT |
| Supply Voltage Range | 100VAC - 240VAC |
| Mounting Type | Flush |
| Sensor Power Supply | 12VDC, 100mA |
| Height (mm) | 48mm |
| Width (mm) | 48mm |
| Depth (Length) (mm) | 84mm |
| Weight (lbs) | 0.24 |
| UOM | ea |
