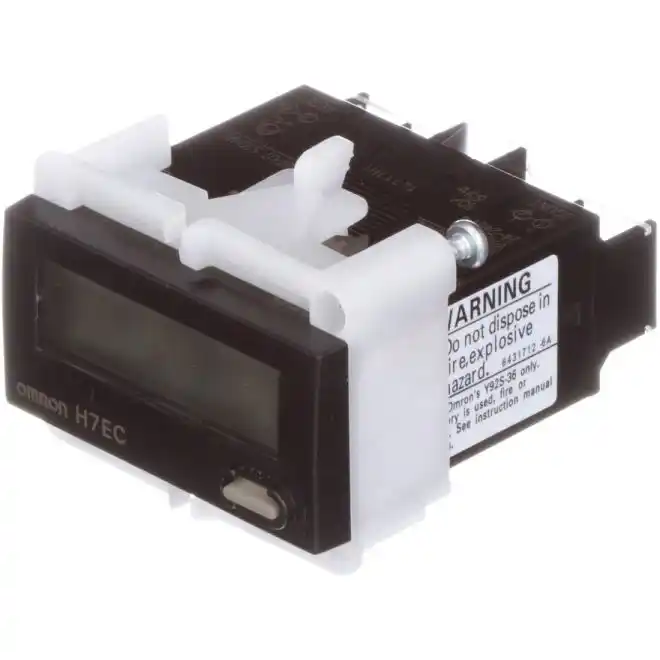

Omron H7EC-NFV-B AC/DC Multi-Voltage Total Counter
SKU#:
142108
Omron H7E series is available with large display with 8.6mm character height. It includes models with backlight for improved visibility in dimly lit places. The H7E family includes total counters, time counters, tachometers and PCB-mounted counters. Battery is replaceable for H7EC-NFV-B totalizer reuse and conservation of the environment.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | H7EC-NFV-B |
| Manufacturer Alternate Number | H7ECNFVB |
| UPC | 4548583755703 |
| Color | Black |
| Cutout Size | 1/32 DIN 24x48mm |
| Totalizer | Yes |
| Display Digits | 8 |
| Maximum Counting Speeds | 20Hz |
| Count Input Type | AC/DC Multi-Voltage Input (24VAC to 240VAC, 24VDC to 240VDC) |
| Supply Voltage Range | Self Powered |
| Mounting Type | Flush |
| Height (mm) | 24mm |
| Width (mm) | 48mm |
| Depth (Length) (mm) | 55.5mm |
| Weight (lbs) | 0.13 |
| UOM | ea |
