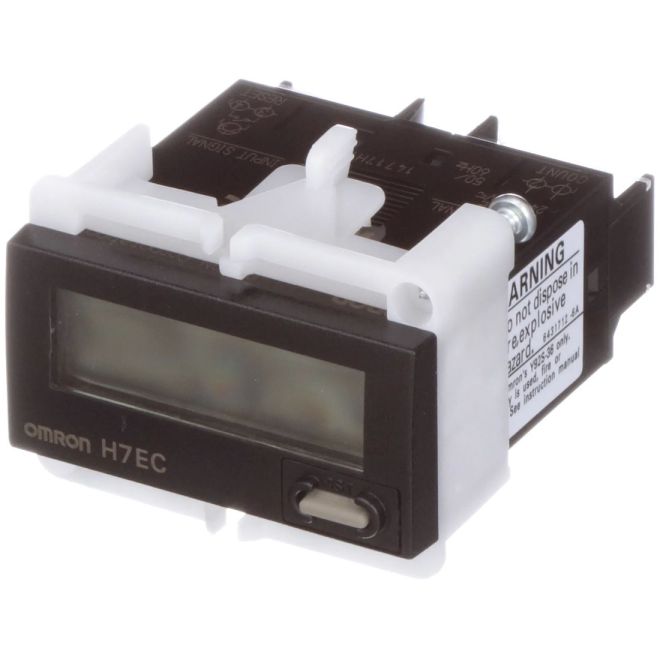

Omron H7EC-NV-B PNP/NPN Universal DC Counter
SKU#:
142109
Omron H7E series is available with large display with 8.6mm character height. It includes models with backlight for improved visibility in dimly lit places. The H7E family includes total counters, time counters, tachometers and PCB-mounted counters. Battery is replaceable for H7EC-NV-B totalizer reuse and conservation of the environment.
| Brand | Omron Automation |
|---|---|
| Manufacturer Part Number | H7EC-NV-B |
| Manufacturer Alternate Number | H7ECNVB |
| UPC | 4548583755666 |
| Color | Black |
| Cutout Size | 1/32 DIN 24x48mm |
| Totalizer | Yes |
| Display Digits | 8 |
| Maximum Counting Speeds | 30Hz or 1kHz (Switchable) |
| Count Input Type | PNP/NPN DC Voltage (4.5VDC to 30VDC) |
| Supply Voltage Range | Self Powered |
| Mounting Type | Flush |
| Height (mm) | 24mm |
| Width (mm) | 48mm |
| Depth (Length) (mm) | 55.5mm |
| Weight (lbs) | 0.13 |
| UOM | ea |
