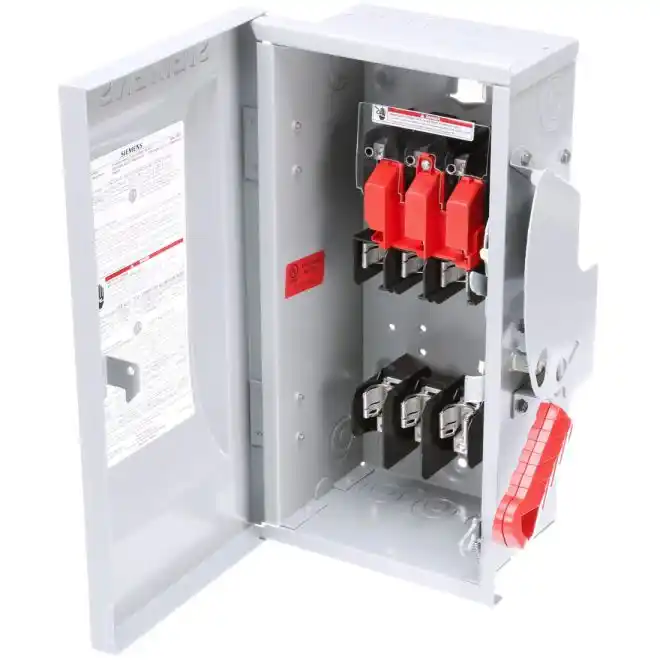

SIEMENS HF361 Heavy Duty Safety Switches 30A UL
SKU#:
252931
Heavy duty switches feature a time-proven design like Vacu-Break, SIEMENS VBII double-break switching action breaks the arc in two places. This reduces heat generation and increases switching speed by doubling the breaking distance. The result is enhanced performance and increased longevity. All HF361 VB II safety switches have been tested not only to meet but to exceed all UL requirements. Defeatable dual cover interlocks are standard on all heavy duty switches. NEMA 1 enclosures are intended for indoor use primarily to provide protection against contact with the enclosed equipment in locations where unusual service conditions do not exist.
| Brand | SIEMENS |
|---|---|
| Manufacturer Part Number | HF361 |
| UPC | 783643151000 |
| Rated Voltage AC | 600VAC |
| Rated Voltage DC | 250VDC |
| Rated Current | 30A |
| Number of Poles | 3 |
| Mounting Type | Surface |
| Type | Heavy-Duty |
| UL Rating Type | NEMA 1 |
| Height (mm) | 393mm |
| Width (mm) | 229mm |
| Depth (Length) (mm) | 258mm |
| Weight (lbs) | 14.00 |
| UOM | ea |
